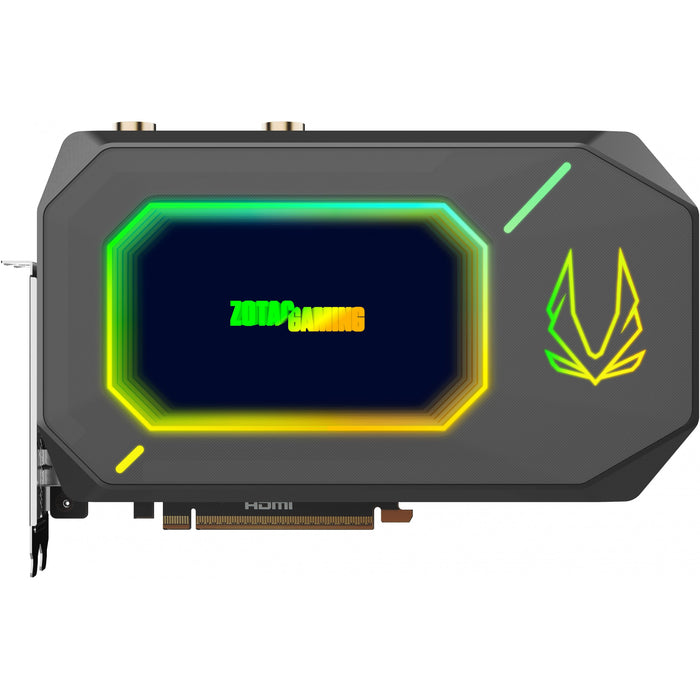

The ZOTAC GAMING GeForce RTX 5090 ARCTICSTORM AIO is the first high-end graphics card by ZOTAC GAMING to utilize a full-sized 360mm Liquid Cooling AIO and full-coverage copper cold plate for the ultimate cooling performance. Designed for gaming enthusiasts who want pure speed and exceptional temperatures, ARCTICSTORM AIO redefines high-end graphics.
Introducing the ZOTAC GAMING GeForce RTX 5090 ArcticStorm AIO, the first ever ZOTAC GAMING graphics card with an advanced design using a powerful 360mm AIO cooler to deliver unparalleled cooling performance and gets the ZOTAC GAMING 50 Series’ signature infinity mirror for the ultimate visual spectacle.
ARCTICSTORM
THE ULTIMATE FLAGSHIP

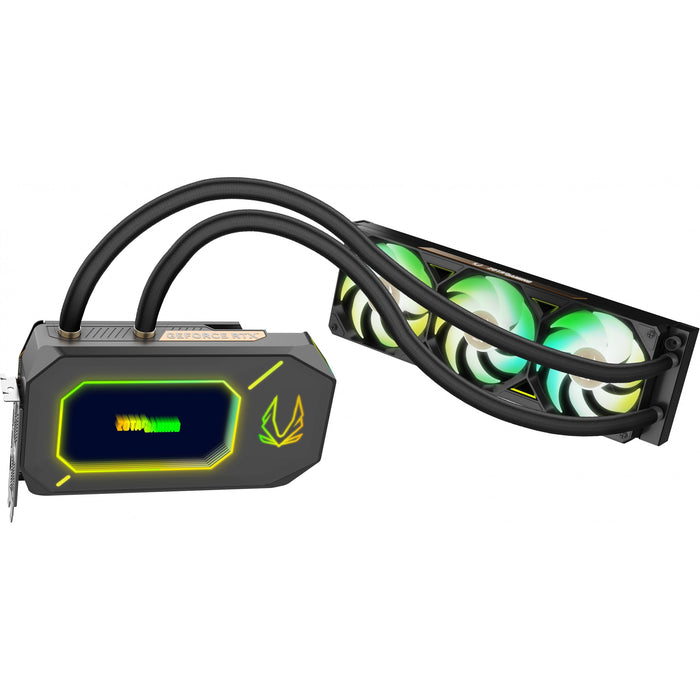

The ArcticStorm AIO is the culmination of ZOTAC GAMING’s pure pursuit for unparalleled cooling, outstanding performance, and beautiful design. Coupled with a premium 360mm radiator, the all-new ArcticStorm AIO annihilates all barriers between you and performance.
120MM FAN ARRAY
A single array of three high-RPM fans with low vibration characteristics ensure optimal acoustic profile, with vents to ensure efficient airflow and long-lasting performance. Highly efficient liquid cooling means that the fans spin slower even at load, resulting in up to 55% quieter operational noise.
MINIMAL CABLE MANAGEMENT REQUIRED
Integrated triple fans with no manual connection needed
FULL-COVERAGE COPPER COLDPLATE
Provides maximum conductivity and heat transfer performance, allowing the radiator to efficiently cool the GPU, VRM and Memory, resulting in up to 30% better cooling performance versus traditional air cooling.
DUAL BIOS
With a press of a switch, switch between two cooling profiles, each prioritizing noise or temperature.
Processor
Feature: CUDA
CUDA cores: 21760
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5090
Processor boost clock speed: 2437 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4
Memory
Discrete graphics card memory: 32 GB
Graphics card memory type: GDDR7
Memory bus: 512 bit
Data transfer rate: 28 Gbit/s

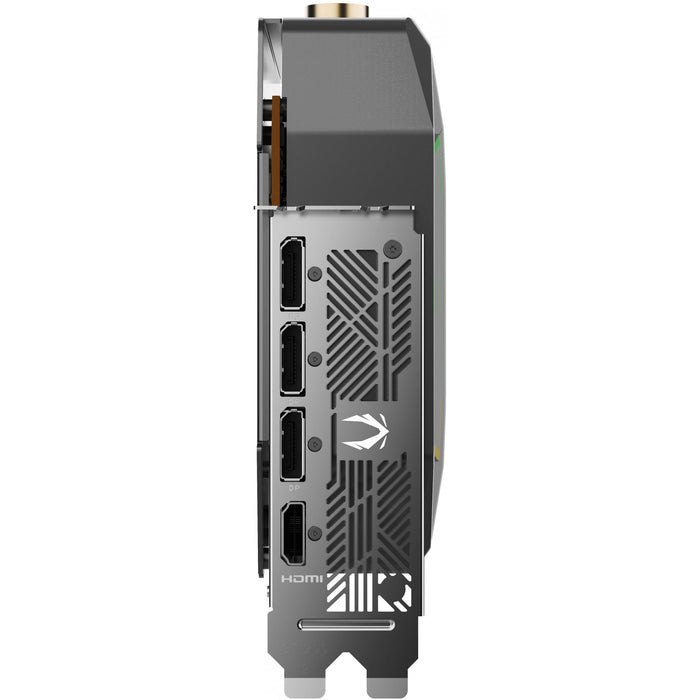

Ports & interfaces
Interface type: PCI Express x16 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1b
Performance
DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: Virtual Reality (VR) ready
Feature: HDCP
HDCP version: 2.3
Feature: NVIDIA G-SYNC
Design
Cooling type: Hybrid/All-in-one
Number of fans: 3 fan(s)
Fan diameter: 12 cm
Tube length: 52 cm
Form factor: Full-Height/Full-Length (FH/FL)
Bracket height: Full-Height (FH)
Number of slots: 2.5
Feature: Illumination
Illumination colour: Multi
Product colour: Grey
Power
Minimum system power supply: 1000 W
Supplementary power connectors: 1x 16-pin
Power consumption (max): 575 W
System requirements
Windows operating systems supported: Windows 10 x64, Windows 11
Weight & dimensions
Length: 251.6 mm
Depth: 49 mm
Height: 160.1 mm
Radiator width: 12.3 cm
Radiator depth: 39.4 cm
Radiator height: 5.57 cm
Packaging data
Package width: 438 mm
Package depth: 172 mm
Package height: 562 mm
Package type: Box
Packaging content
Feature: Power cord included
Feature: Manual
Zotac GAMING GeForce RTX 5090 ARCTICSTORM AIO. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5090. Discrete graphics card memory: 32 GB, Graphics card memory type: GDDR7, Memory bus: 512 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Hybrid/All-in-one, Number of fans: 3 fan(s), Illumination colour: Multi
Zotac
MBR CODE - ZT-B50900K-30P
EAN - 8886307701541
