Big Productivity in a Small Package

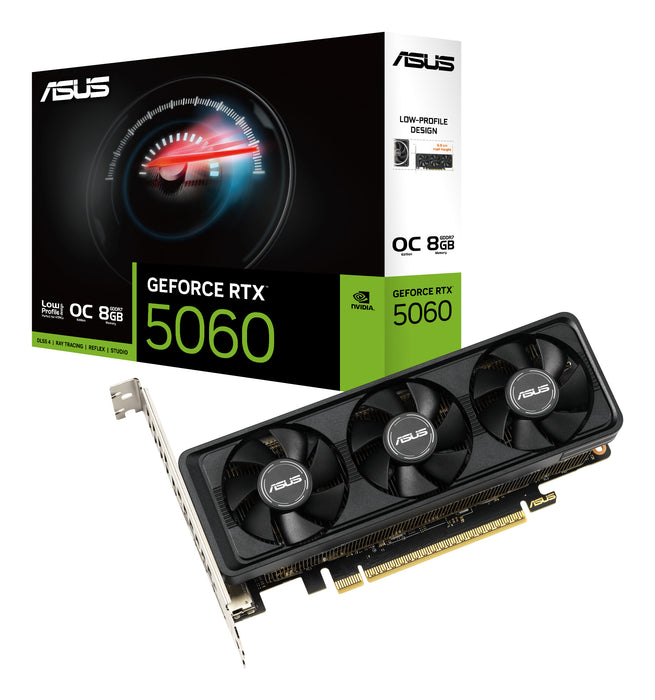

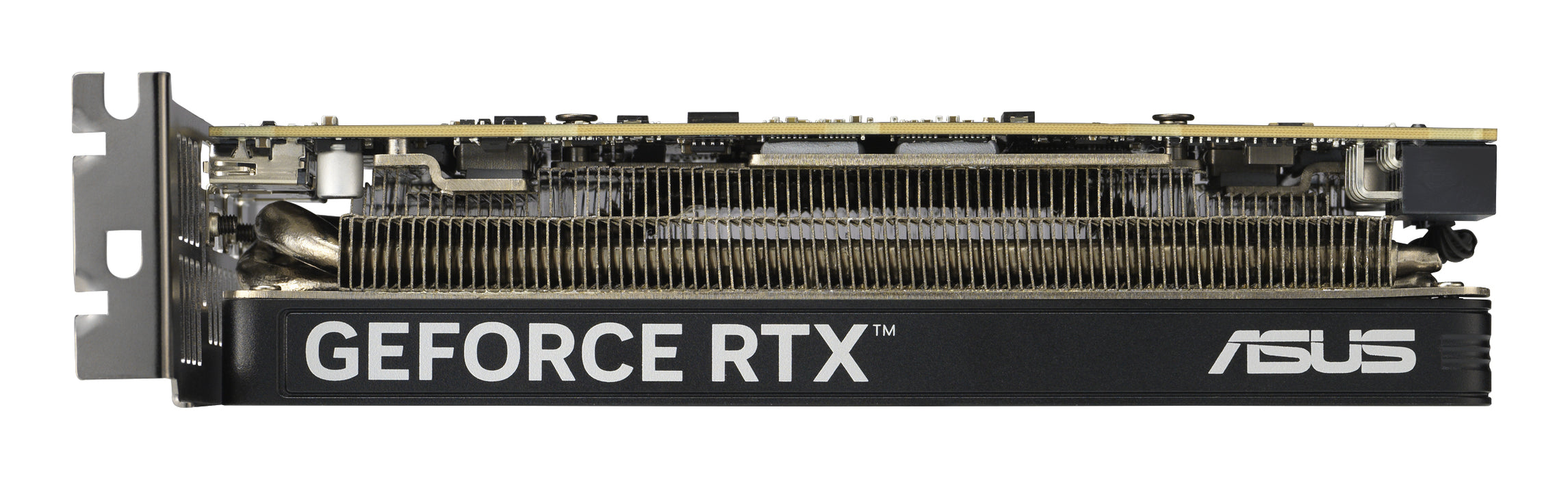

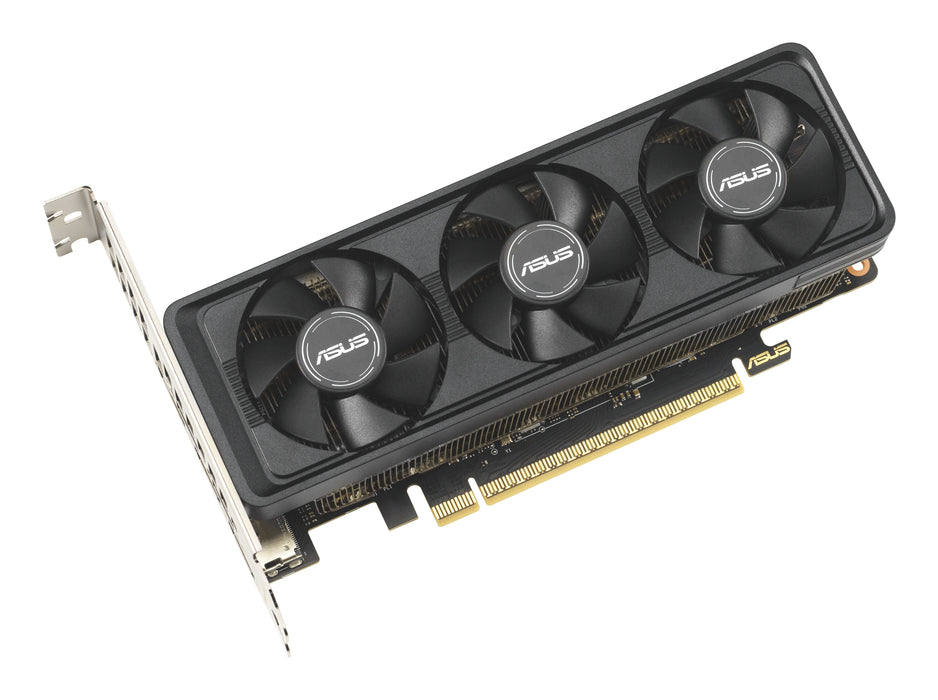

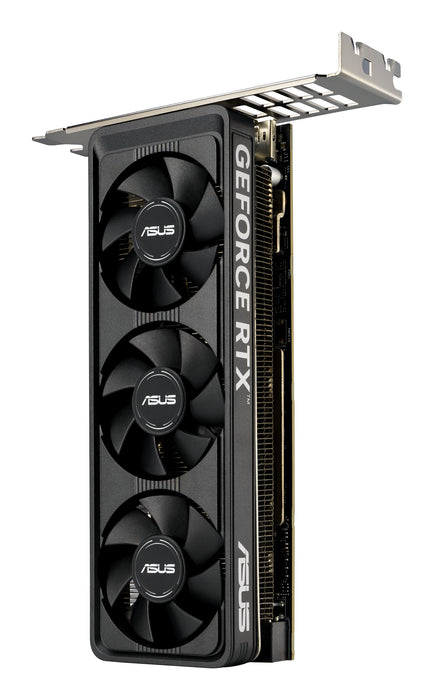

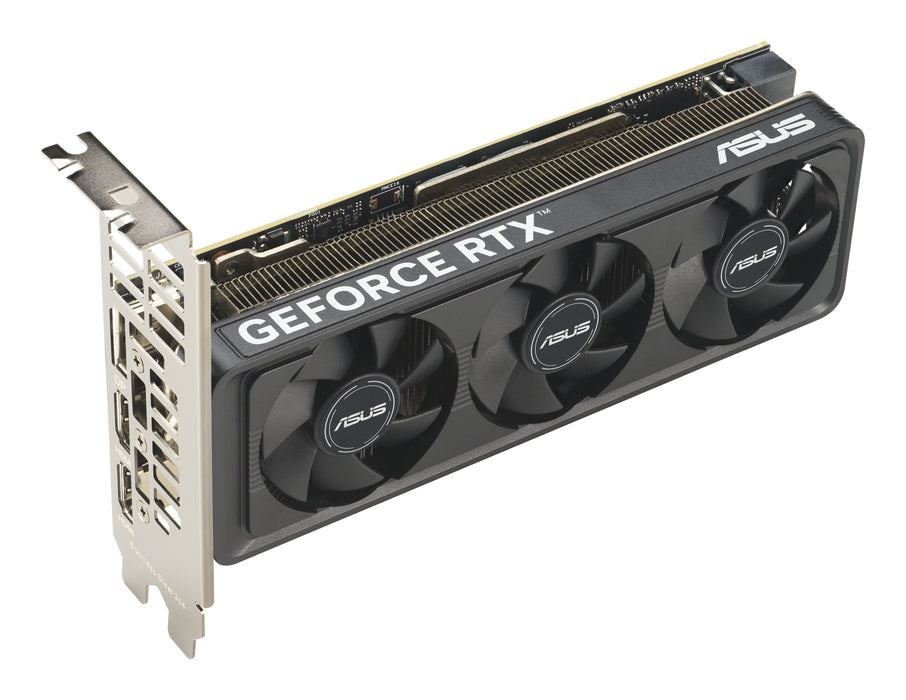

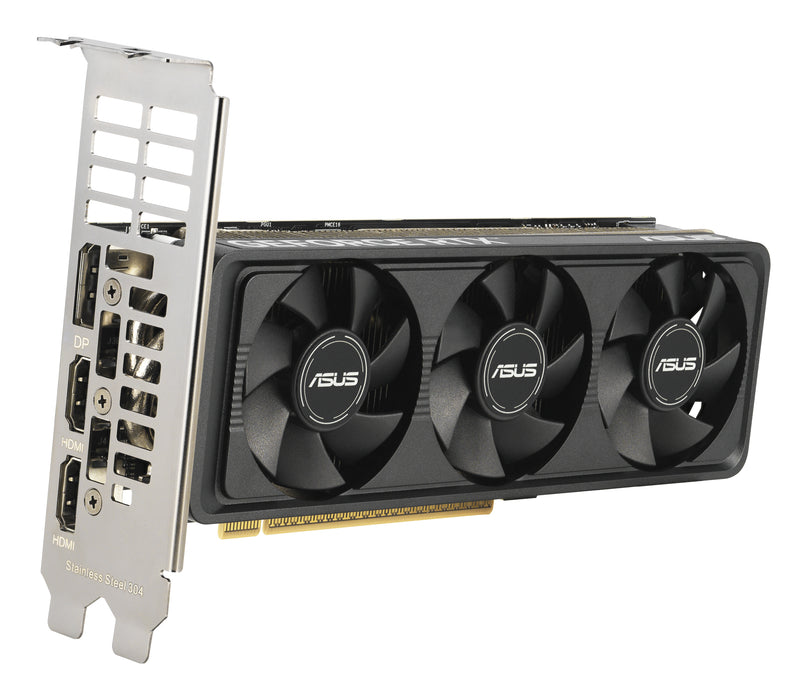

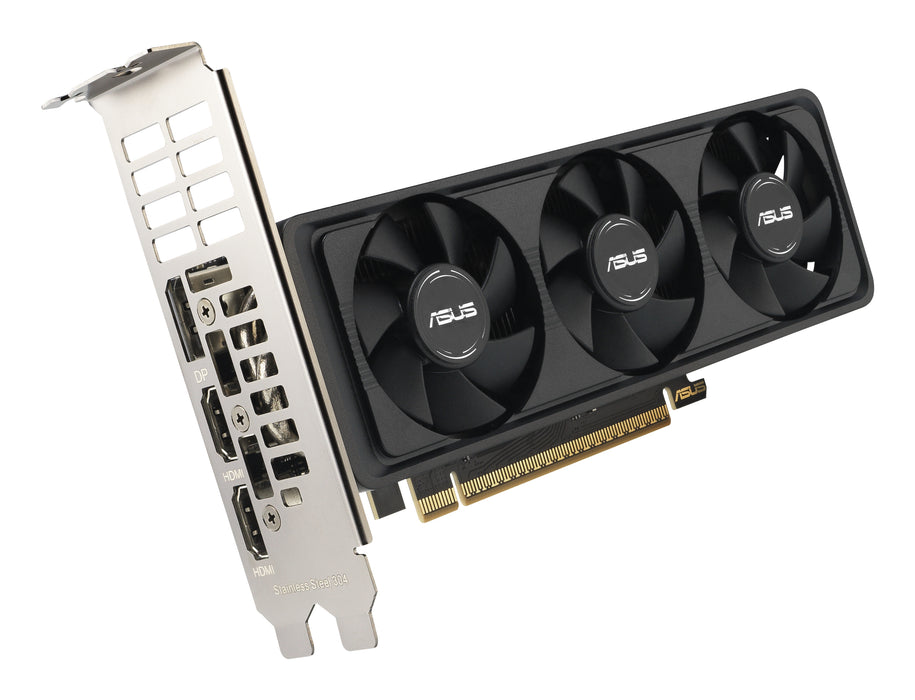

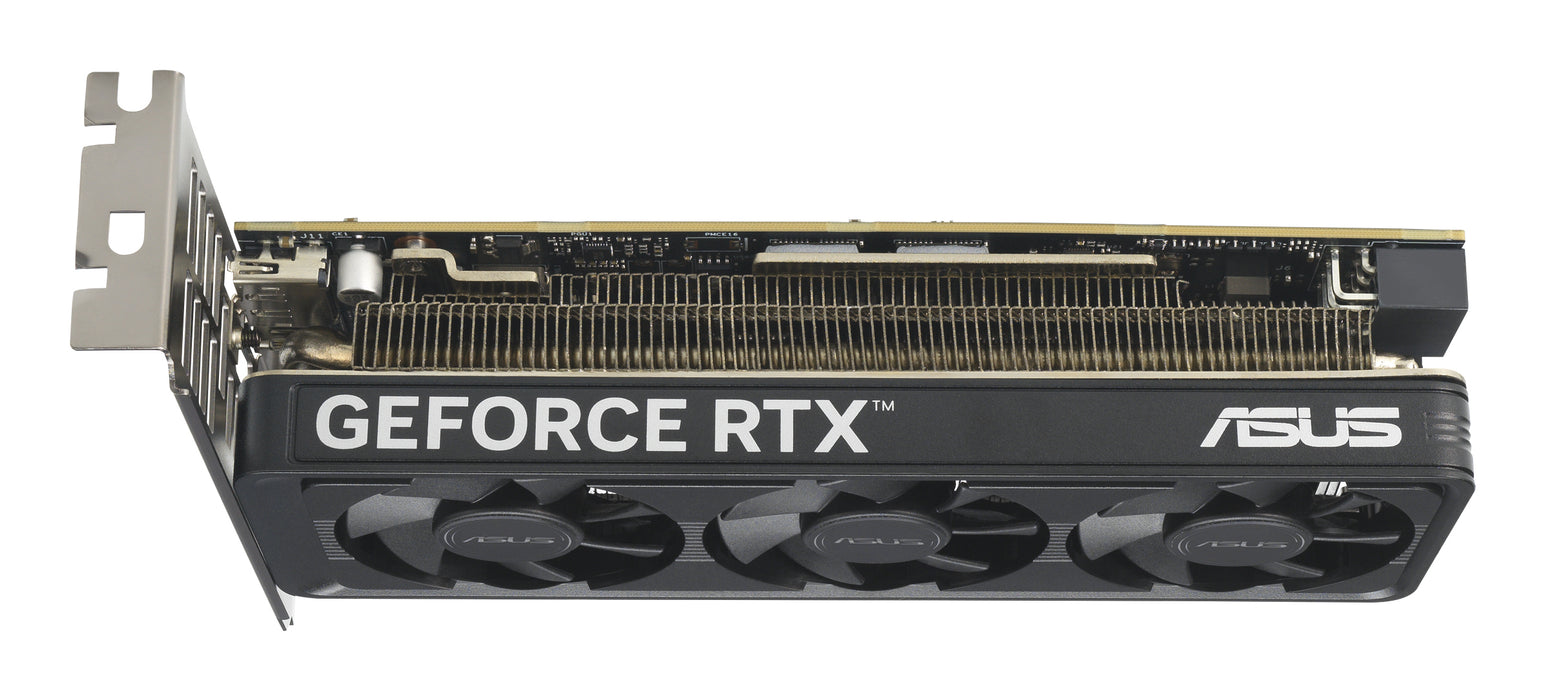

ASUS GeForce RTX™ 5060 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.
CUDA | Yes |
CUDA cores | 3840 |
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 5060 |
Processor boost clock speed | 2550 MHz |
Processor frequency (OC mode) | 2580 MHz |
Maximum resolution | 7680 x 4320 pixels |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Discrete graphics card memory | 8 GB |
Graphics card memory type | GDDR7 |
Memory bus | 128 bit |
Data transfer rate | 28 Gbit/s |
Interface type | PCI Express 5.0 |

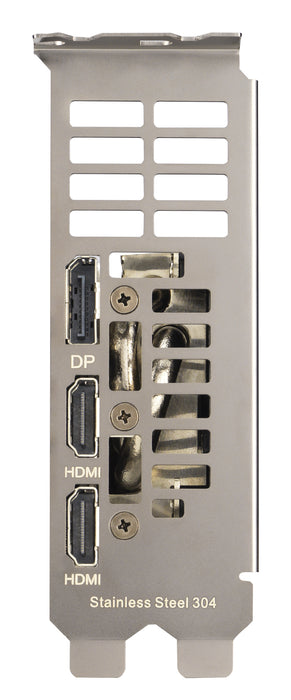

HDMI ports quantity | 2 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 2.1a |
OpenGL version | 4.6 |
Virtual Reality (VR) ready | Yes |
HDCP | Yes |
HDCP version | 2.3 |
Dual Link DVI | No |
NVIDIA G-SYNC | Yes |
NPU performance up to | 627 TOPs |
Overclocked (OC) edition | Yes |
Cooling type | Active |

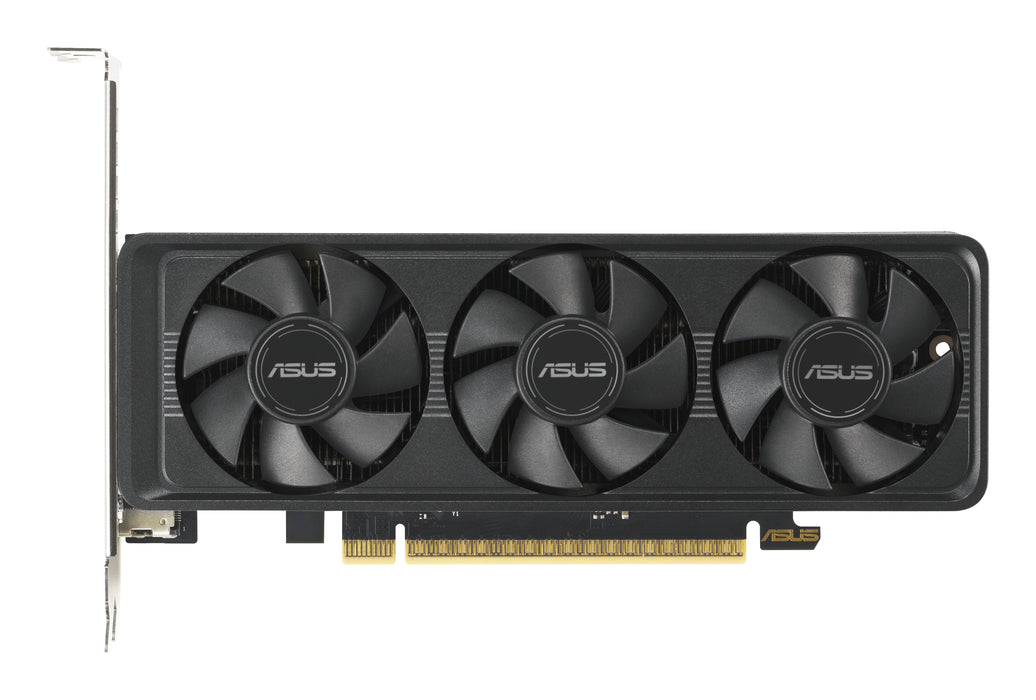

Number of fans | 3 fan(s) |
Number of slots | 2 |
Product colour | Multicolour |
Minimum system power supply | 550 W |
Supplementary power connectors | 1x 8-pin |
Windows operating systems supported | Yes |
Length | 175.8 mm |
Depth | 38 mm |
Height | 69 mm |
Package width | 300 mm |
Package depth | 55 mm |
Package height | 218 mm |
Package type | Box |
