Processor
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.2 V
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2666,3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 32 GB
Storage controllers
Supported storage drive interfaces: SATA
Graphics
Graphics card family: ASPEED
Graphics card: AST2500
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Feature: ATX Power connector (24-pin)
Feature: Power fan connector
Feature: TPM connector
Feature: RGB LED pin header

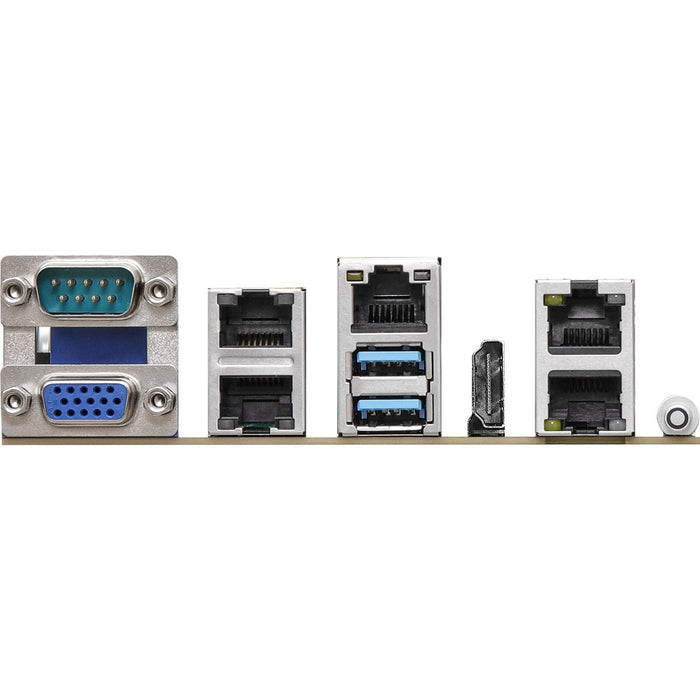

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Serial ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
Features
Motherboard chipset: AMD X570
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
BIOS
BIOS type: UEFI AMI
BIOS memory size: 32 Mbit
ACPI version: 6.2
System Management BIOS (SMBIOS) version: 3.3.0
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 243.8 mm
Depth: 243.8 mm

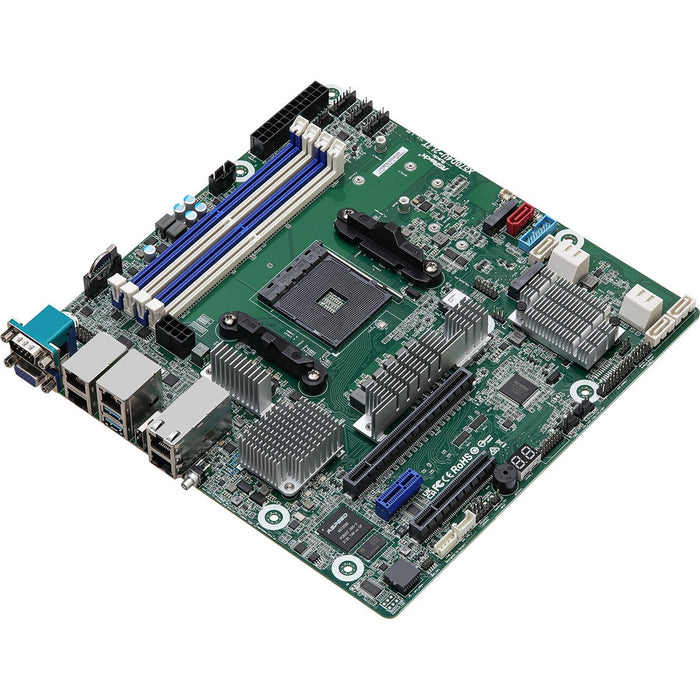

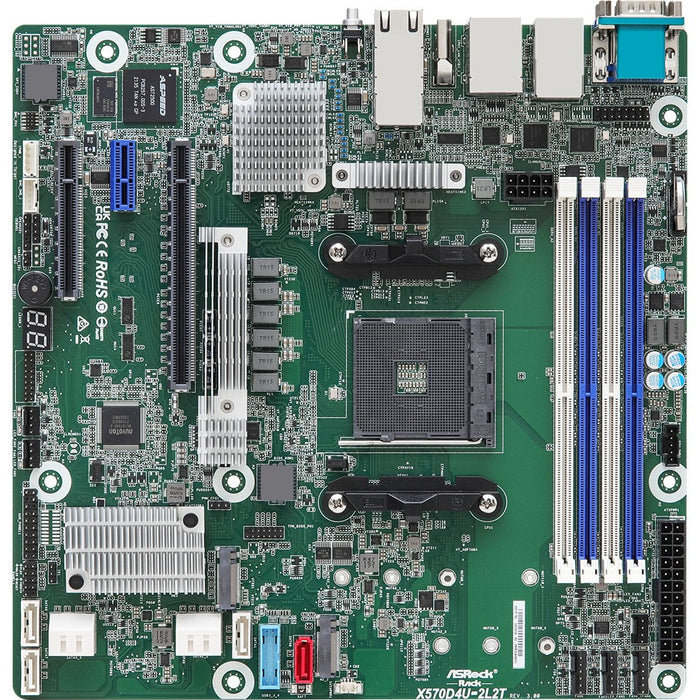

Asrock X570D4U-2L2T/BCM. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA. Graphics card family: ASPEED, Graphics card: AST2500. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
ASRock
MBR CODE - X570D4U-2L2T/BCM
EAN - 4710483940828
