Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 8 cm
Noise level: 0.6 sone
Maximum airflow: 40 cfm
Airflow: 67.96 m³/h
Feature: Pulse-width modulation (PWM) support
Fan bearing technology: Double ball bearing
Quantity per pack: 1 pc(s)
Fan speed (min): 500 RPM
Fan speed (max): 5000 RPM
Fan static pressure: 5.3 mmH2O
Fan's mean time to failure (MTTF): 500000 h
Operating temperature (T-T): 0 - 40 °C
Design
Product colour: Black
Number of fans: 1 fan(s)
Number of fan blades: 5
Fan connector: 4-pin
Rack capacity: 2U
Power
Starting voltage: 3.2 V
Fan voltage: 12 V
Fan current: 0.19 A
Weight & dimensions
Fan dimensions (W x D x H): 80 x 80 x 25 mm
Fan weight: 84 g
Cable length: 0.4 m
Package width: 82.5 mm
Package depth: 82.5 mm
Package height: 26 mm
Package weight: 89 g
Packaging content
Feature: Mounting kit
Feature: Screws included
Other features
Country of origin: Hong Kong

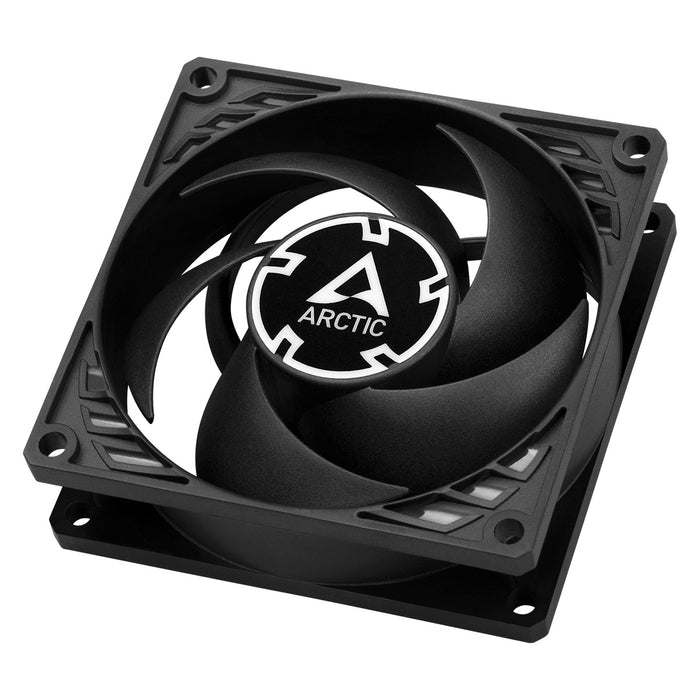

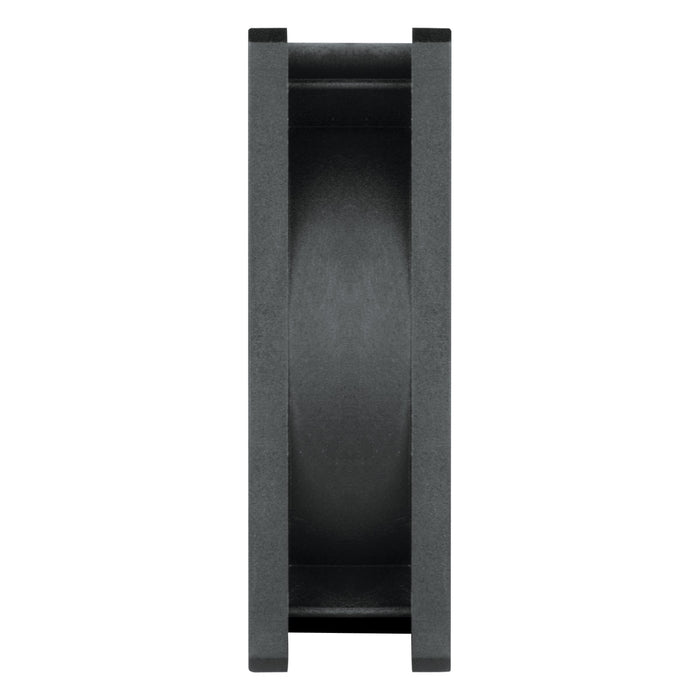

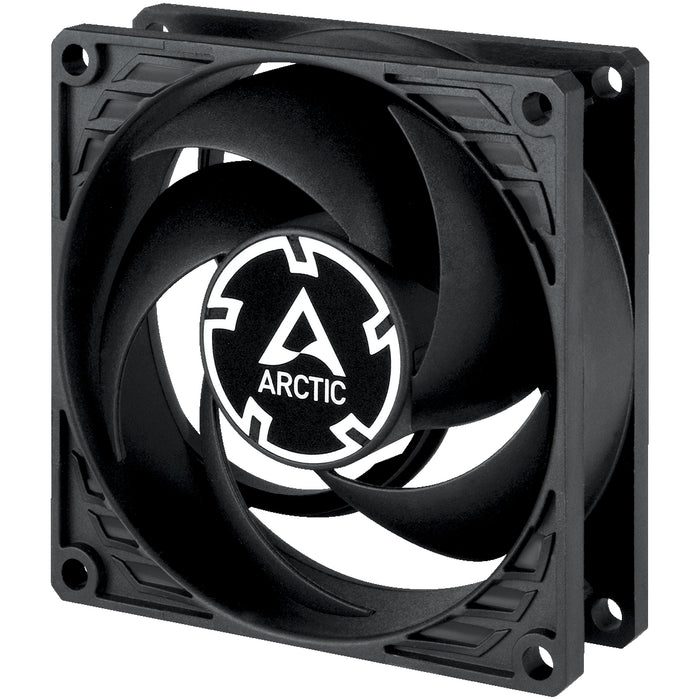

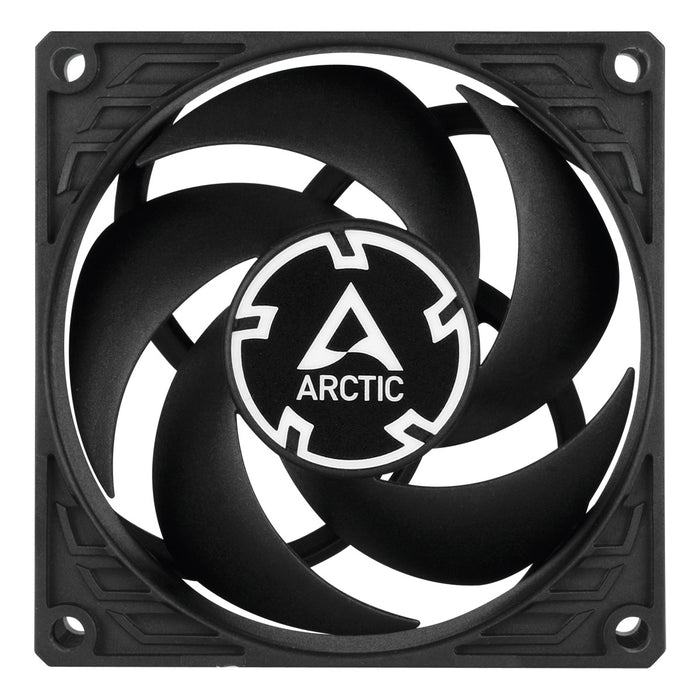

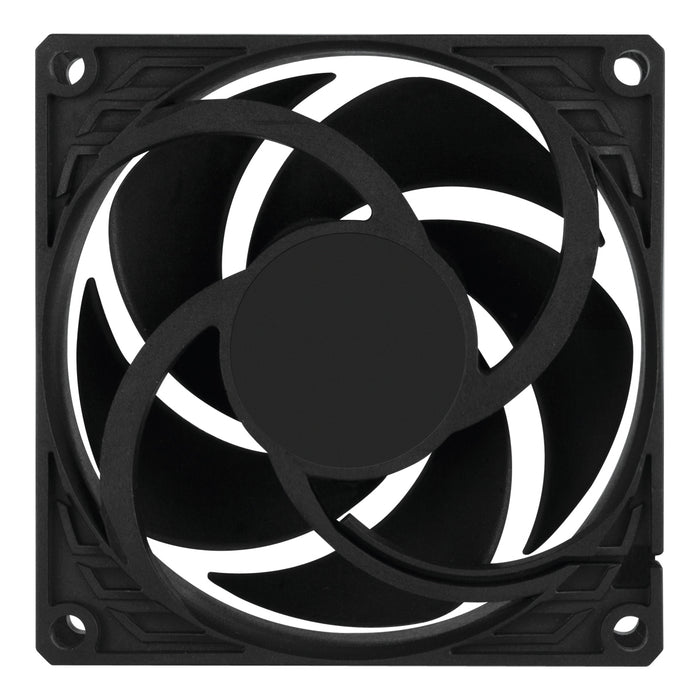

ARCTIC P8 Max - High-Performance 80 mm PWM Fan. Type: Fan, Fan diameter: 8 cm, Noise level: 0.6 sone, Airflow: 67.96 m³/h. Product colour: Black
ARCTIC
MBR CODE - ACFAN00286A
EAN - 4895213704090
