ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 14 cm
Rotational speed (min): 150 RPM
Rotational speed (max): 1800 RPM
Noise level: 0.3 sone
Maximum airflow: 52 cfm
Airflow: 88.35 m³/h
Maximum air pressure: 1.55 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Fluid Dynamic Bearing (FDB)
Quantity per pack: 1 pc(s)
Operating temperature (T-T): 0 - 40 °C
Design
Product colour: Black

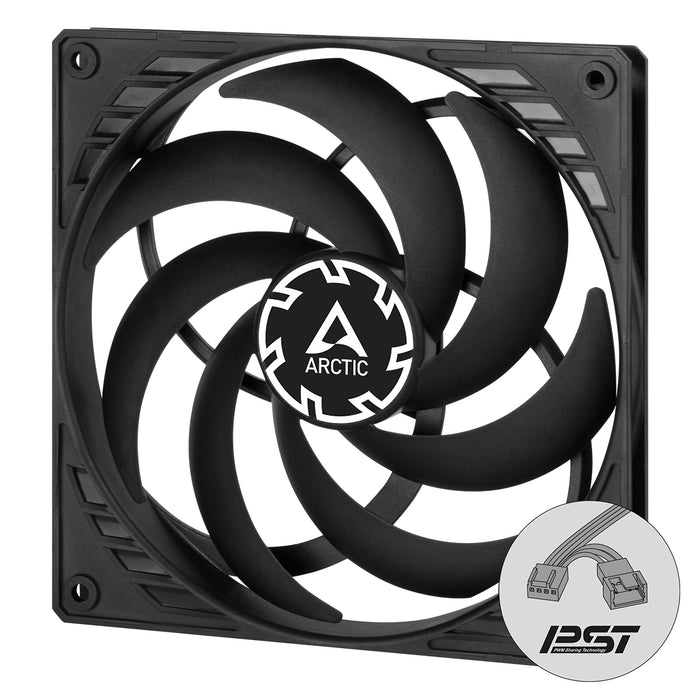

Fan connector: 4-pin + 4-pin
Power
Voltage: 12 V
Starting voltage: 4 V
Fan current: 0.19 A
Weight & dimensions
Weight: 109 g
Fan dimensions (W x D x H): 140 x 140 x 16 mm
Fan weight: 109 g
Cable length: 0.48 m
Package width: 143 mm
Package depth: 156 mm
Package height: 17 mm
Packaging content
Feature: Screws included
Number of screws: 4
Other features
Country of origin: China
Logistics data
Harmonized System (HS) code: 84733080

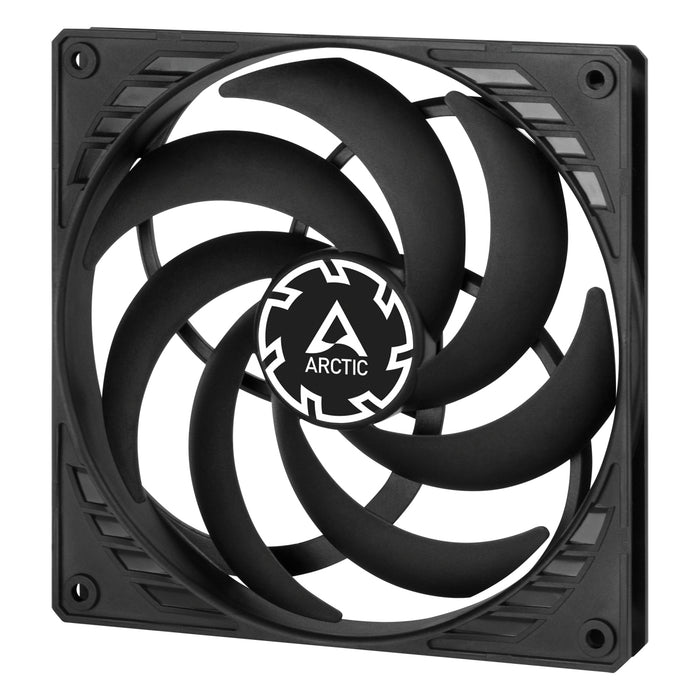

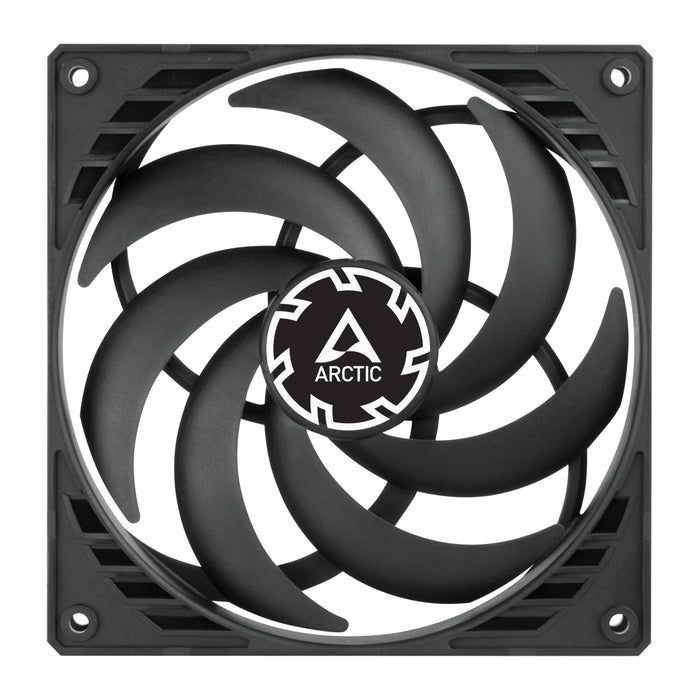

ARCTIC P14 Slim PWM PST Pressure-optimised 140 mm PWM Fan with integrated Y-cable. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 150 RPM, Rotational speed (max): 1800 RPM, Noise level: 0.3 sone, Airflow: 88.35 m³/h, Maximum air pressure: 1.55 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Product colour: Black
ARCTIC
MBR CODE - ACFAN00268A
EAN - 4895213703871
