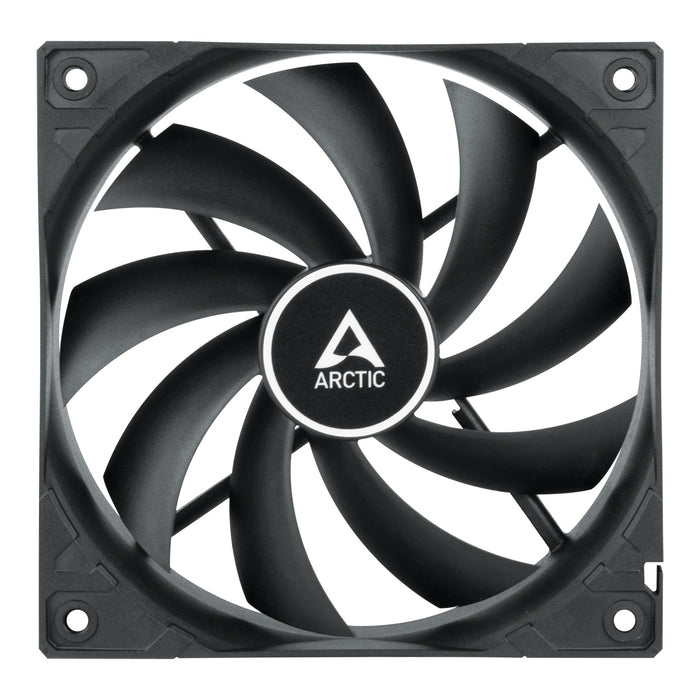

The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.
Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Supported processor sockets: Not supported
Compatible processor series: Not supported
Rotational speed (min): 0 RPM
Rotational speed (max): 1350 RPM
Noise level: 0.3 sone
Maximum airflow: 53 cfm
Airflow: 90.1 m³/h
Minimum air pressure: 1 mmH2O
Bearing type: Fluid Dynamic Bearing (FDB)

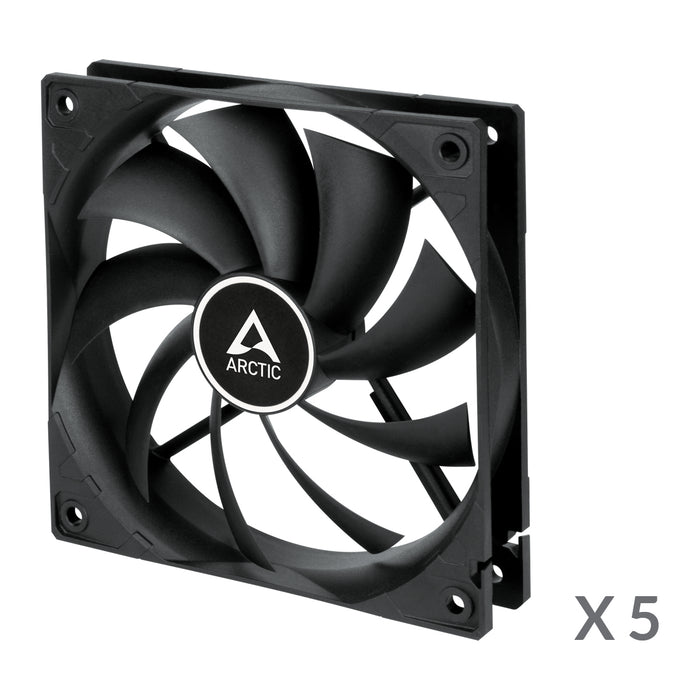

Quantity per pack: 5 pc(s)
Operating temperature (T-T): 0 - 40 °C
Design
Product colour: Black

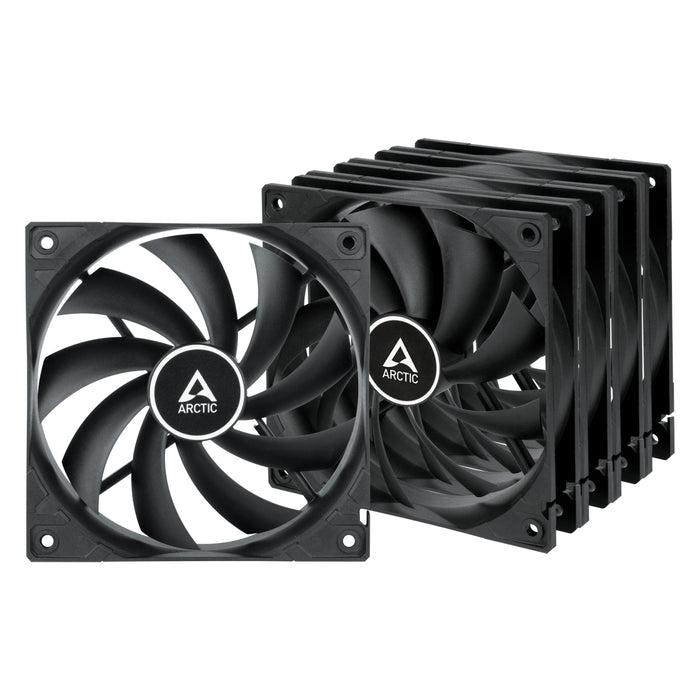

Number of fans: 5 fan(s)
Fan connector: 3-pin
Power
Voltage: 12 V
Starting voltage: 2.7 V
Rated current: 0.12 A
Weight & dimensions
Width: 120 mm
Depth: 120 mm

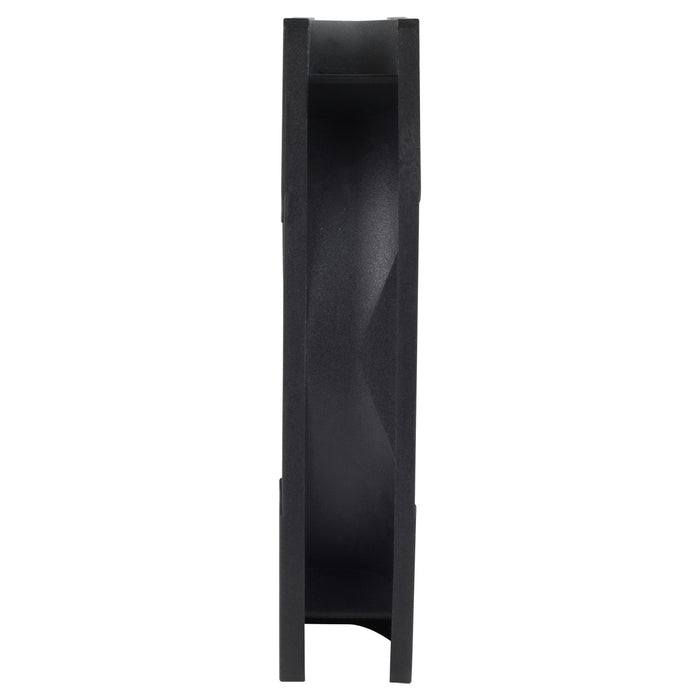

Height: 25 mm
Weight: 107 g
Cable length: 0.4 m
Package width: 123 mm
Package depth: 137 mm
Package height: 127 mm
Package weight: 642 g
Packaging content

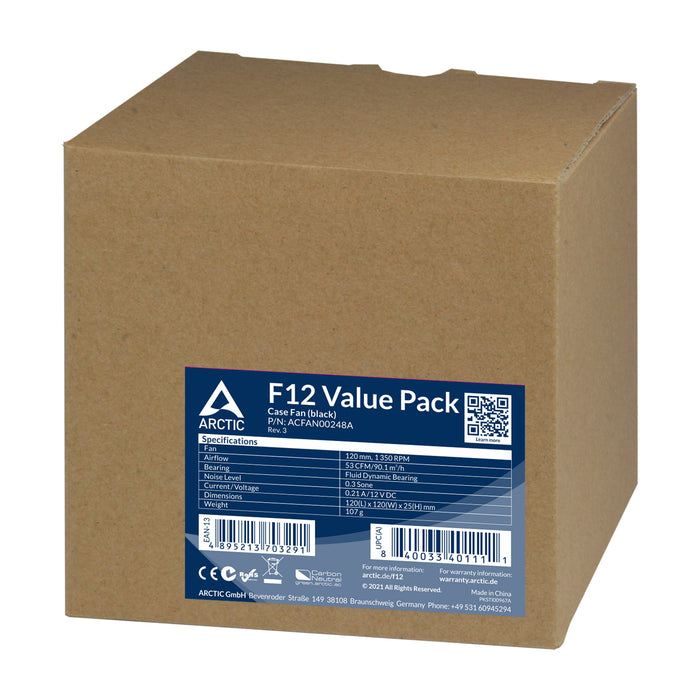

Package type: Box
Other features
Country of origin: Hong Kong
Logistics data
Harmonized System (HS) code: 84733080
ARCTIC F12 - 120 mm Standard Case Fan. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 0 RPM, Rotational speed (max): 1350 RPM, Noise level: 0.3 sone, Airflow: 90.1 m³/h, Minimum air pressure: 1 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
ARCTIC
MBR CODE - ACFAN00248A
EAN - 4895213703291
