Ver detalhes complexos em 4K
O HMQ-6501 tem 3840 x 2160 pixels, proporcionando imagens de vídeo mais nítidas. A alta resolução permite fazer zoom com detalhes nítidos, como provas de CCTV. Como resultado, o operador pode ampliar a imagem de uma matrícula de um veículo ou das linhas de um rosto. Além disso, o painel permite ao operador visualizar vídeos e gráficos 4K com um novo nível de detalhe e nitidez.
Suporte para streaming de vídeo de alta definição 3G-SDI 1080p
O suporte para 3G-SDI e HD-SDI com resolução de 1080p permite que o HMQ-6501 apresente sinais de vídeo em directo a partir de câmaras SDI. O terminal de saída loop-through SDI permite a apresentação da mesma imagem num monitor SDI local ou noutro dispositivo SDI.
Transmissão descomprimida e com latência ultrabaixa por longa distância
O HMQ-6501 suporta diversos padrões de vídeo SDI, incluindo os formatos SD, HD e 3G-SDI. Estas normas oferecem latência ultrabaixa e transmissão sem compressão de sinais HDTV até 300 metros para monitorização de vídeo em direto.
As distâncias máximas para a transmissão de sinais 3G-SDI, HD-SDI e SD-SDI através de cabos coaxiais RG6:
3G-SDI: 100M
HD-SDI: 150M
SD-SDI: 300M
Ajuste fino de IMAGENS CCTV para máxima clareza e detalhe
Um modo CCTV pré-configurado especial maximiza a nitidez da imagem em filmagens com pouca luz. Pode fazer ajustes granulares e refinar rapidamente as suas filmagens com nitidez, saturação, contraste, brilho e muito mais. Assim, não precisa de perder tempo a testar e a reajustar constantemente, pois o HMQ-6501 já tem tudo isto planeado!
Seleção gama melhorada
Oferecer uma seleção de gama melhorada proporciona uma excelente otimização visual. Como resultado, pode melhorar facilmente a qualidade de luz, sombra e equilíbrio de cor dos seus vídeos.
Detalhes visíveis em cenas escuras
A tecnologia permite fazer ajustes no nível de preto, o que facilita a exibição de mais detalhes em imagens de videovigilância captadas à noite ou em ambientes com pouca luz.
Feito à medida para confiabilidade
O monitor de segurança HMQ-6501 adota um painel de nível comercial e incorpora componentes de alta qualidade para garantir operações contínuas 24 horas por dia, 7 dias por semana. Além disso, a tecnologia patenteada Anti-burn-in™ acrescenta outro nível de proteção em ambientes de missão crítica.
Invólucro de metal garante monitorização fiável
A estrutura metálica exterior proporciona uma maior dissipação de calor, proporcionando um elevado nível de resistência e durabilidade. Isto, por sua vez, melhora o desempenho de arrefecimento, garantindo um funcionamento adequado 24 horas por dia, 7 dias por semana.
Fácil controlo e integração
As ligações RS232/LAN integradas e o software de comando PID e Ctrl da AG Neovo permitem controlar, configurar e manter facilmente instalações de múltiplos monitores de forma simples e intuitiva. O software oferece interfaces web e móveis intuitivas para gestão remota e configurações relacionadas com OSD.
Conectividade versátil e loop de vídeo

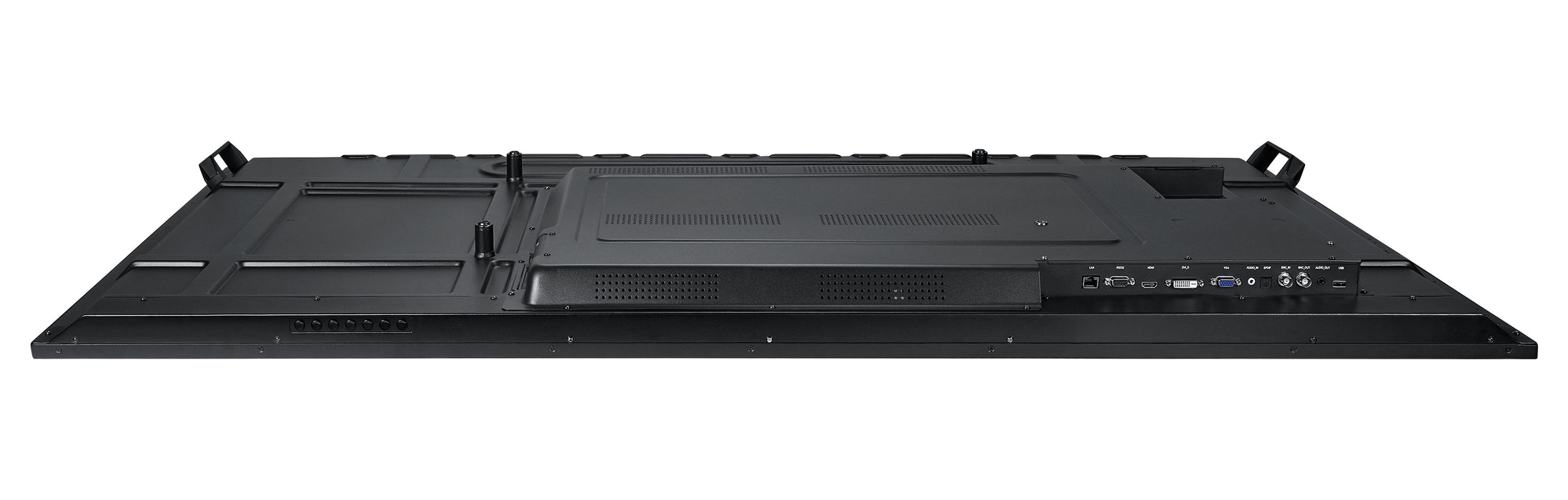

O HMQ-6501 pode ser facilmente ligado a diversos equipamentos de vigilância com portas HDMI, DVI, VGA, SDI e Composite (BNC). As suas entradas e saídas BNC permitem que as imagens da câmara de segurança sejam apresentadas diretamente no ecrã e transmitidas para o segundo dispositivo para monitorização instantânea.
| Tipo de produto | Monitor de CCTV |
| Tipo de montagem | Montado na parede |
| Cor do produto | Preto |
| Exibir diagonal | 163,8 cm (64,5") |
| Resolução do ecrã | 3840 x 2160 pixéis |
| Tipo de visor | LEVADO |
| Tipo de painel | IPS |
| Brilho da tela | 400 cd/m² |
| Ângulo de visão, horizontal | 178° |
| Ângulo de visão, vertical | 178° |
| Exibir número de cores | 1,07 mil milhões de cores |
| Distância entre pixéis | 0,372 x 0,372 mm |
| Taxa de contraste (típica) | 1200:1 |
| Tempo de resposta | 5 ms |
| Taxa de nevoeiro | 1% |
| Espaço de cor RGB | NTSC |
| Cobertura NTSC (típica) | 72% |
| Tela antirreflexo | Sim |
| Dureza da superfície | 3H |
| Frequência horizontal digital | 15 - 135 kHz |
| Frequência vertical digital | 24 - 86 Hz |
| Altifalante(s) embutido(s) | Sim |
| Número de altifalantes embutidos | 2 |
| Potência do altifalante | 10 W |
| Montagem VESA | Sim |
| Interface de montagem em painel | 600 x 400 mm |
| Número de portas HDMI | 1 |
| Versão HDMI | 2.0 |
| Número de portas DVI-D | 1 |
| Número de portas VGA (D-Sub) | 1 |
| Ethernet LAN | Sim |
| Nº de portas RJ-45 | 1 |
| Porta USB | Sim |
| Nº de portas USB 2.0 | 1 |
| Vídeo composto em | 1 |
| Saída de vídeo composto | 1 |
| 3,5 mm (1/8 de polegada) pol. | Sim |
| 3,5 mm (1/8 pol.) de saída | Sim |
| Portas RS-232 | 1 |
| Entradas SDI | 1 |
| Saídas SDI | 1 |
| Saída óptica de áudio digital | 1 |
| Tipo de fonte de alimentação | CA |
| Tipo de fonte de alimentação | Interno |
| Consumo de energia (típico) | 123 W |
| Consumo de energia (standby) | 0,5 W |
| Consumo de energia (desligado) | 0,3 W |
| Tensão de entrada CA | 100 - 240 V |
| Frequência de entrada CA | 50 - 60 Hz |
| Classe de eficiência energética (SDR) | G |
| Escala de eficiência energética | A a G |
| Consumo de energia (SDR) durante 1000 horas | 123 kWh |
| Temperatura de funcionamento (TT) | 0 - 40 °C |
| Temperatura de armazenamento (TT) | 10 - 60 °C |
| Humidade relativa de operação (HH) | 20 - 85% |
| Humidade relativa de armazenamento (HH) | 10 - 95% |
| Conformidade com a sustentabilidade | Sim |
| Certificados de conformidade | CE, Diretiva de Baixa Tensão (LVD), REACH, RoHS, UKCA, WEEE |
| Peso | 26,2 kg |
| Altura | 851,7 mm |
| Profundidade | 79,8 mm |
| Largura | 1476,7 mm |
| Largura da embalagem | 1660 mm |
| Profundidade do pacote | 220 mm |
| Altura da embalagem | 1045 mm |
| Peso da embalagem | 36,7 kg |
| Cabos incluídos | CA, HDMI |
| Comando remoto incluído | Sim |
| Guia de início rápido | Sim |
AG Neovo HMQ-6501
