VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!
Enhanced Safety in Operation
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.
Compact Size for Easy Installation
With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.
Intelligent Fan-Curve Design
The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.
Long, Reliable Lifespan
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.
Six Industrial Safeguards
XPG PROBE offers 6 industrial-grade protections, shielding your system from over-power, over-voltage, surge and inrush, under-voltage, short circuits, and over temperature.
Power
Total power: 700 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 10 A
Power factor: 0.99
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 19 A
Max output current (+12V): 54 A
Max output current (+5V): 17 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 5
Peripheral (Molex) power connectors (4-pin): 2
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: ATX Power connector (24-pin)
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.52
Bearing technology: Sleeve
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 2160 - 2640 RPM
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Certificates
Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.53 kg

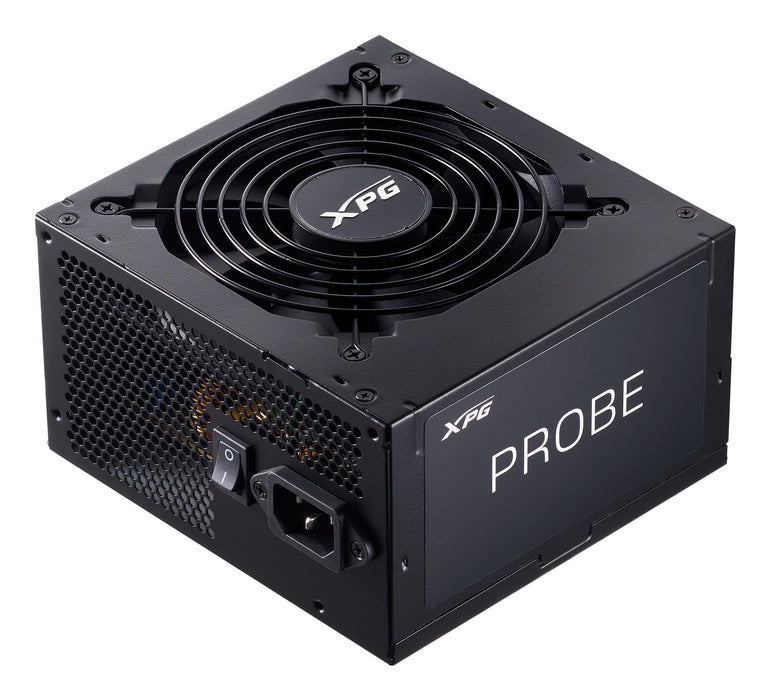

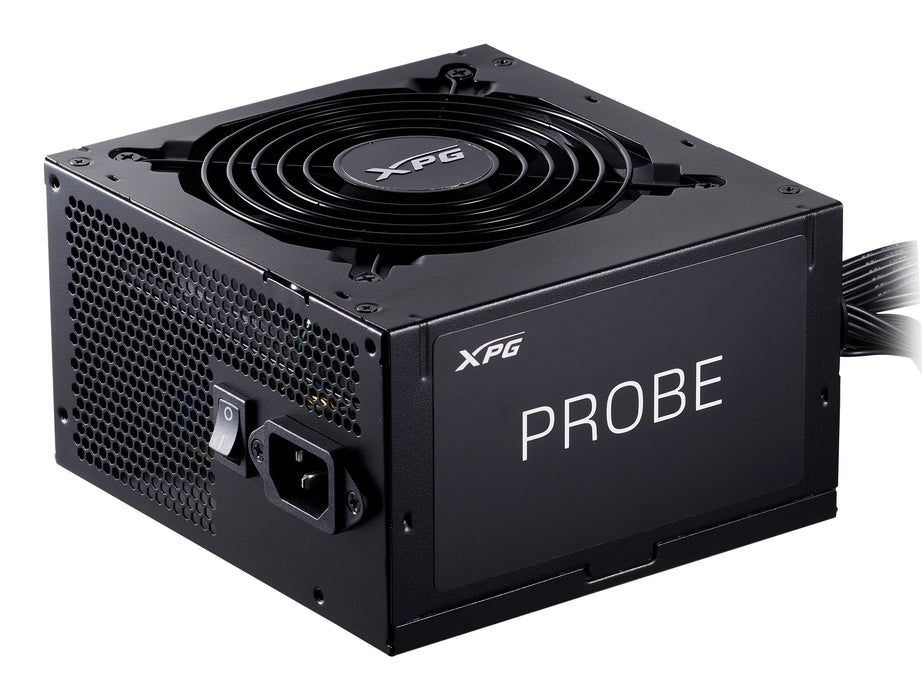

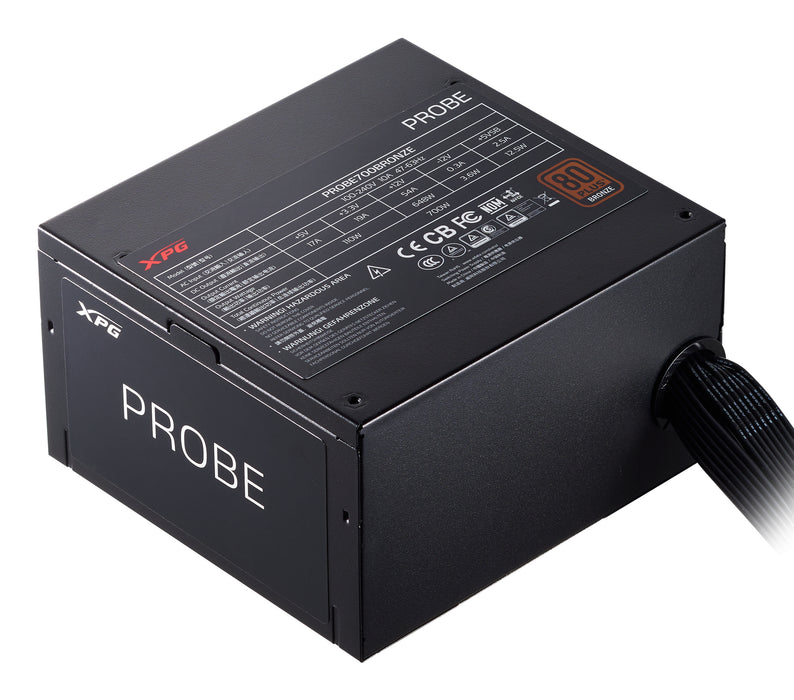

XPG PROBE 700 BRONZE Power Supply. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
ADATA
MBR CODE - 75261557
EAN - 4711085948618
