Power
Total power: 1350 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1350 W
Combined power (+5V): 120 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 24 A
Max output current (+12V): 112.5 A
Max output current (+5V): 24 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

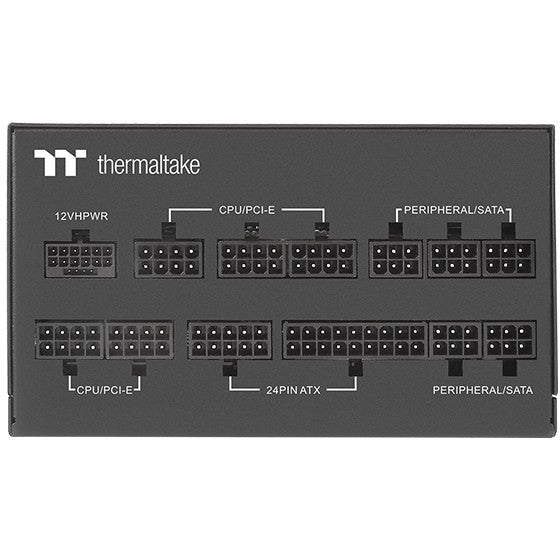

Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 500,650,800 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500,650,800,950 mm
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 50 cm
Feature: CPU power connector (4+4 pin)
Floppy drive power connector: 1
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Feature: Silent mode
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black

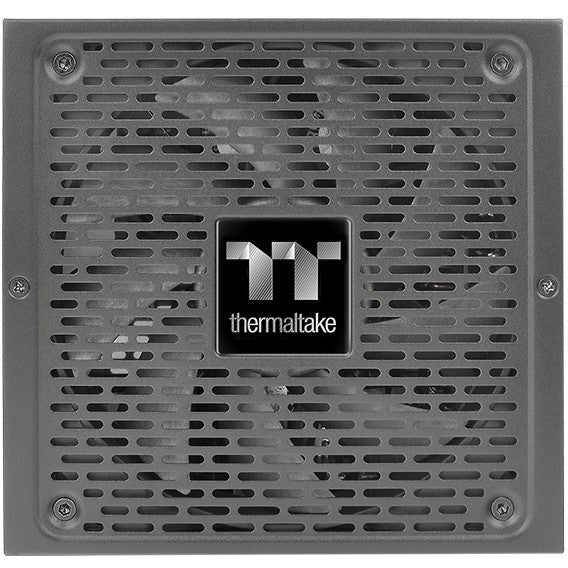

Fan diameter: 14 cm
Number of fans: 1 fan(s)

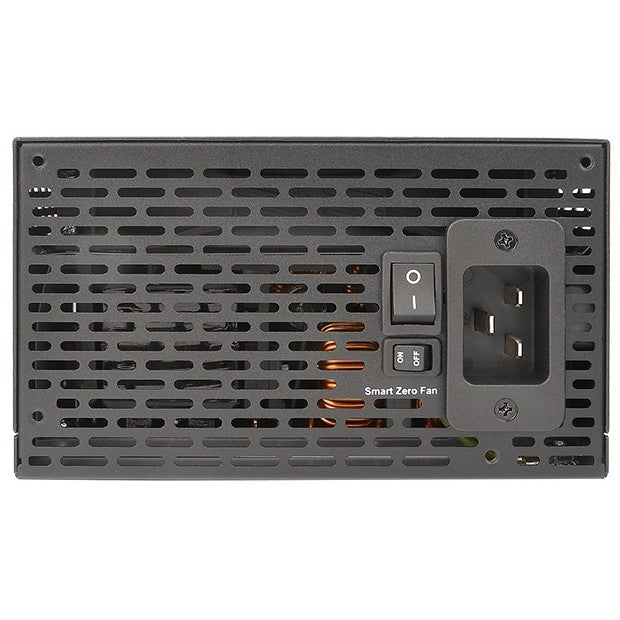

Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 20 - 95%

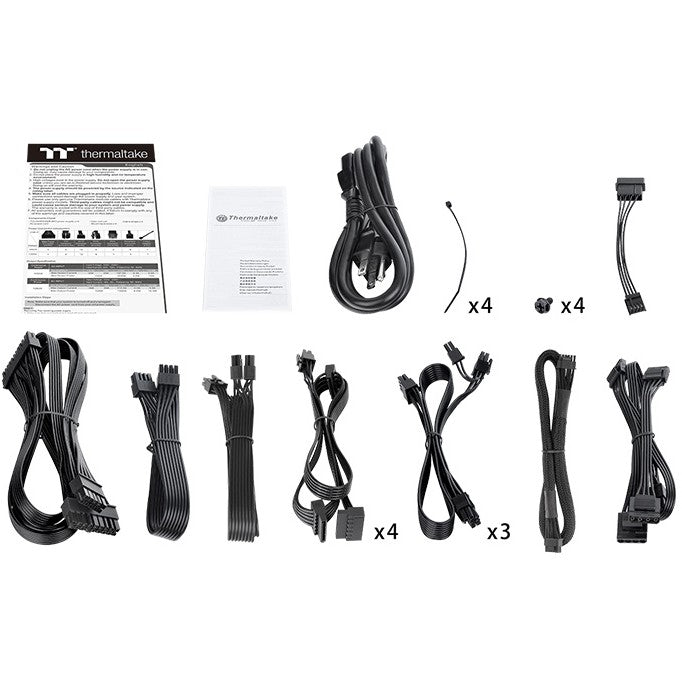

Packaging content
Feature: Cable tie(s) included
Certificates
Certification: CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/S-Mark/BIS/KCC
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.83 kg
Packaging data
Package type: Box

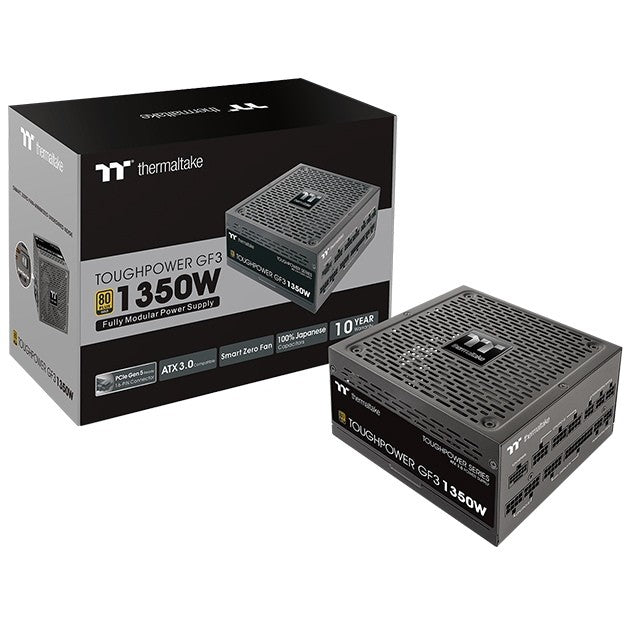

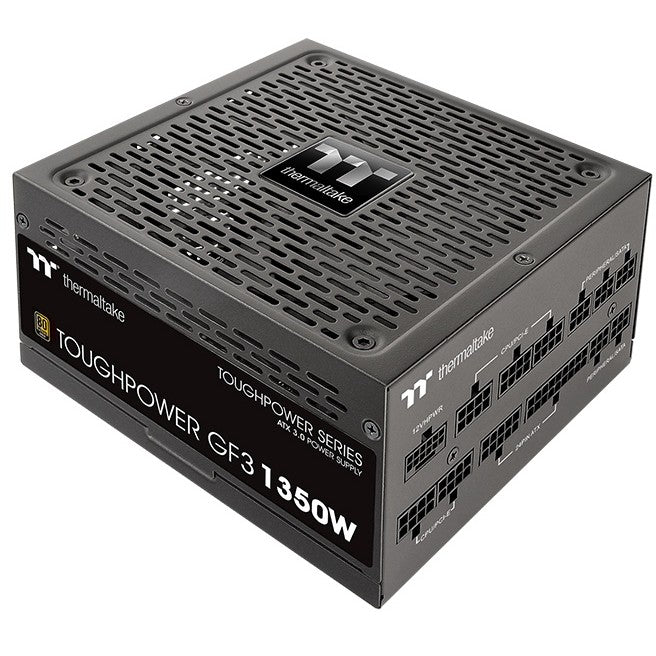

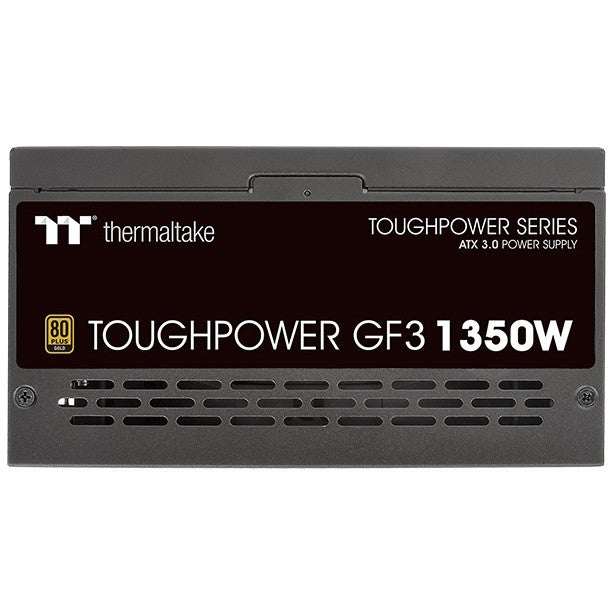

Thermaltake Toughpower GF3. Total power: 1350 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, 80 PLUS certification: 80 PLUS Gold, Bearing technology: HDB. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Certification: CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/S-Mark/BIS/KCC
Thermaltake
MBR CODE - PS-TPD-1350FNFAGE-4
EAN - 4713227534352
