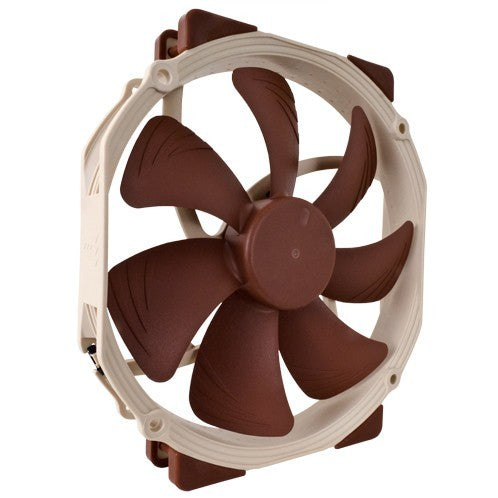

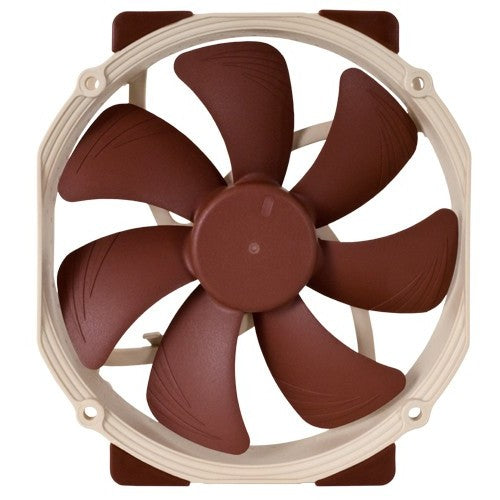

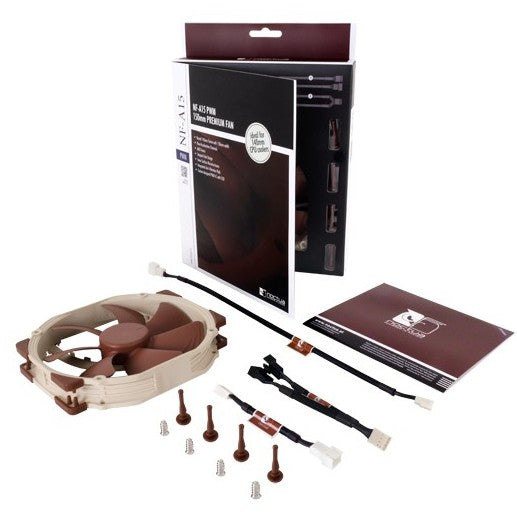

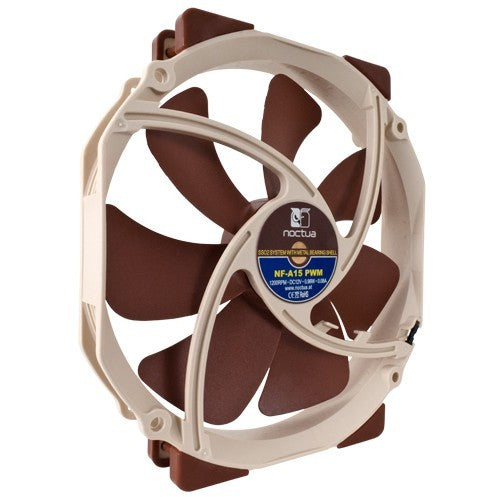

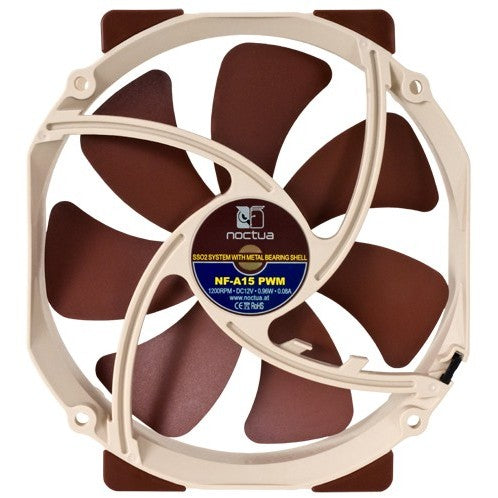

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. The NF-A15’s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today’s high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctua’s custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A15 is a premium choice for the highest demands.
Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 14 cm
Supported processor sockets: Not supported
Compatible processor series: Not supported
Rotational speed (max): 1200 RPM
Noise level (high speed): 19.2 dB
Airflow: 115.5 m³/h
Maximum air pressure: 1.51 mmH2O
Mean time between failures (MTBF): 150000 h
Power
Voltage: 12 V
Maximum current: 0.8 A
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 25 mm
Technical details
Bearing technology: SSO2
Other features
Feature: Speed detection
Connector(s): 4-pin
Power: 0.96 W
Logistics data
Harmonized System (HS) code: 84733080
Noctua NF-A15 PWM. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1200 RPM, Airflow: 115.5 m³/h, Maximum air pressure: 1.51 mmH2O. Voltage: 12 V. Width: 140 mm, Depth: 150 mm, Height: 25 mm
NOCTUA
MBR CODE - NF-A15 PWM
EAN - 4716123314806
