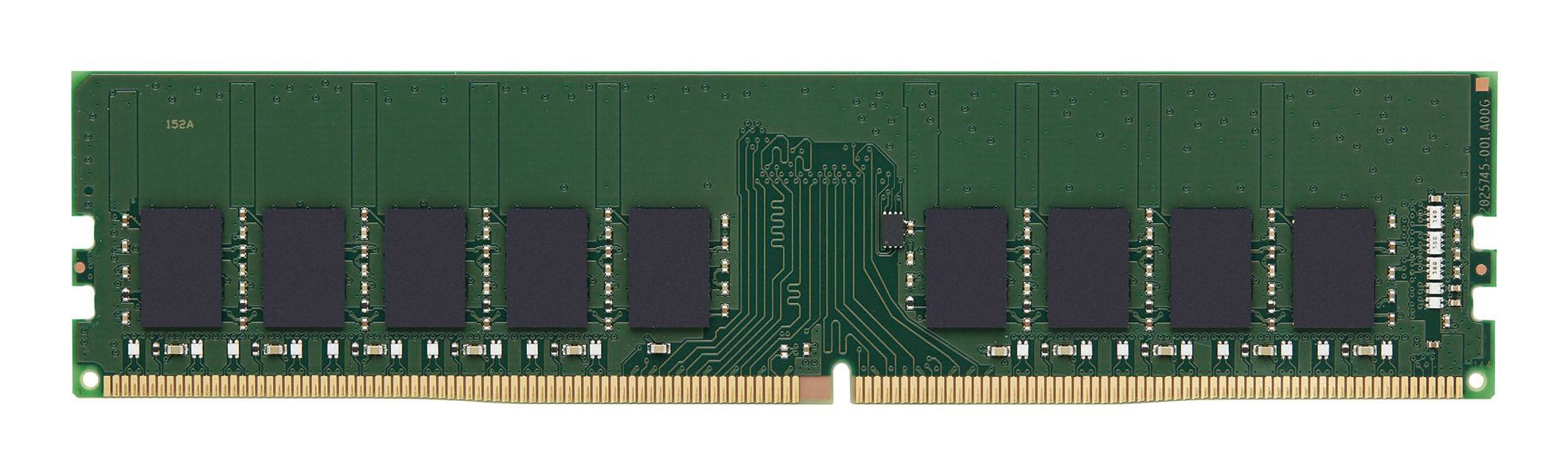

Kingston's KSM32ED8/16HE is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Features
Buffered memory type: Unregistered (unbuffered)
CAS latency: 22
Internal memory: 16 GB
Memory layout (modules x size): 2 x 8 GB
Internal memory type: DDR4
Memory data transfer rate: 3200 MT/s
Component for: Server
Memory form factor: 288-pin DIMM
Feature: ECC
Memory channels: Dual-channel
Memory ranking: 2
Memory voltage: 1.2 V
Module configuration: 2048M x 72
Row cycle time: 45.75 ns
Row active time: 32 ns
Feature: SPD profile
Programming power voltage (VPP): 2.5 V
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 - 85 °C
Storage temperature (T-T): -55 - 100 °C
Technical details
Compliance certificates: RoHS
Weight & dimensions
Width: 133.3 mm
Height: 31.2 mm
Kingston Technology KSM32ED8/16HE. Component for: Server, Internal memory: 16 GB, Memory layout (modules x size): 2 x 8 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC
Kingston
MBR CODE - KSM32ED8/16HE
EAN - 0740617348835
