Design
Material: SGCC
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, EATX, Mini-ITX, SSI CEB, SSI EEB
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of expansion slots: 7
Feature: Rack mounting
Rack capacity: 4U
Maximum CPU cooler height: 13 cm
Maximum graphics card length: 45 cm
Cooling
Number of front fans supported (max): 3
Front fans diameters supported: 120,240,360 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 80 mm
Front radiator sizes supported: 120,240,360 mm
Storage
Supported HDD sizes: 2.5,3.5"
Weight & dimensions
Width: 480 mm
Depth: 427 mm
Height: 176.8 mm

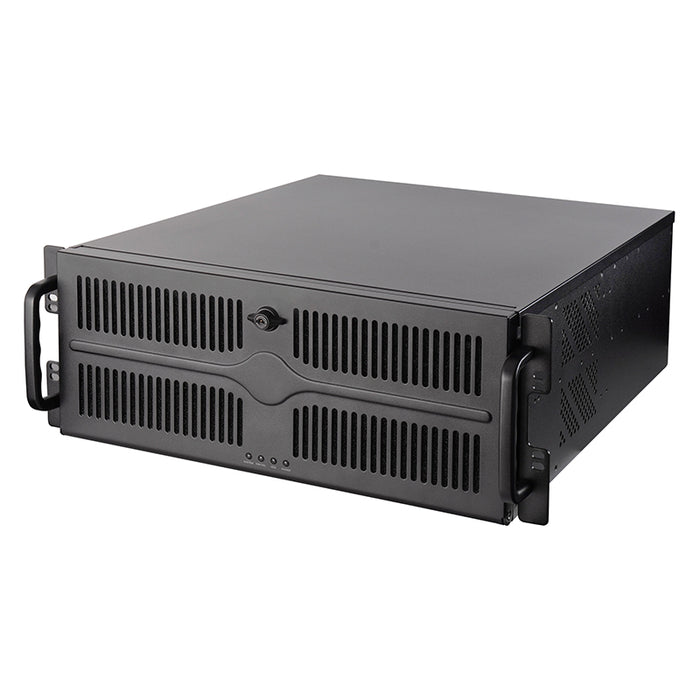

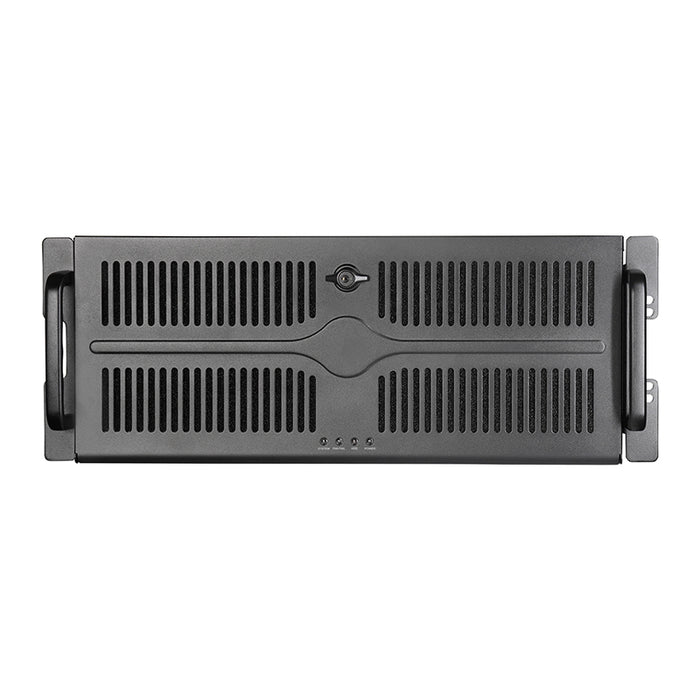

Chieftec UNC-409S-AIO-OP. Form factor: Rack, Type: Server, Product colour: Black. Front fans diameters supported: 120,240,360 mm, Rear fans diameters supported: 80 mm, Front radiator sizes supported: 120,240,360 mm. Supported HDD sizes: 2.5,3.5". Width: 480 mm, Depth: 427 mm, Height: 176.8 mm
Chieftec
MBR CODE - UNC-409S-AIO-OP
EAN - 0753263079213
| Material | SGCC |
| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, Mini-ITX, SSI CEB, SSI EEB |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Rack mounting | Yes |
| Rack capacity | 4U |
| Side window | No |
| Illumination | No |
| Maximum CPU cooler height | 13 cm |
| Maximum graphics card length | 45 cm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,240,360 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 80 mm |
| Front radiator sizes supported | 120,240,360 mm |
| Supported HDD sizes | 2.5,3.5" |
| Width | 480 mm |
| Depth | 427 mm |
| Height | 176.8 mm |
