ProcessorProcessor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
MemorySupported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory: 128 GB
Feature: Unbuffered memory
Storage controllersSupported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 10
Internal I/OUSB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: 12V power connector
Feature: RGB LED pin header
Rear panel I/O portsUSB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 2
Headphone outputs: 1
Feature: Microphone in
NetworkFeature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3
FeaturesMotherboard chipset: AMD A620
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slotsPCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
BIOSBIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging dataPackage width: 275 mm
Package depth: 275 mm
Package height: 67.5 mm
Package weight: 920 g
Weight & dimensionsWidth: 244 mm
Depth: 244 mm
Height: 50 mm
Other featuresWeight: 800 g

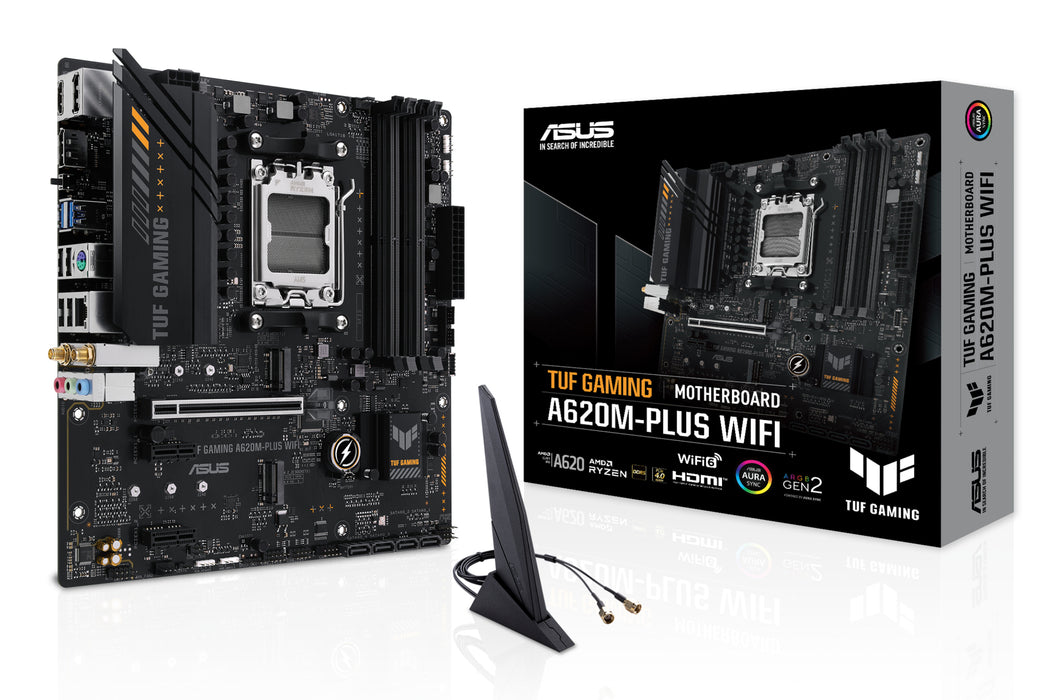

ASUS TUF GAMING A620M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
ASUS
MBR CODE - 90MB1F00-M0EAY0
EAN - 4711387164266
Processor manufacturer |
AMD |
Processor socket |
Socket AM5 |
Compatible processor series |
AMD Ryzen 7000 Series |
Supported memory types |
DDR5-SDRAM |
Number of memory slots |
4 |
Memory channels |
Dual-channel |
ECC сompatibility |
ECC & Non-ECC |
Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
Maximum internal memory |
128 GB |
Unbuffered memory |
Yes |
Supported storage drive types |
HDD & SSD |
Supported storage drive interfaces |
M.2, SATA III |
Number of HDDs supported |
4 |
Number of storage drives supported |
6 |
RAID support |
Yes |
RAID levels |
0, 1, 10 |
On-board graphics card |
No |
USB 2.0 connectors |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
Number of SATA III connectors |
4 |
S/PDIF out connector |
Yes |
Front panel audio connector |
Yes |
ATX Power connector (24-pin) |
Yes |
CPU fan connector |
Yes |
Number of chassis fan connectors |
2 |
EPS power connector (8-pin) |
Yes |
Number of COM connectors |
1 |
12V power connector |
Yes |
RGB LED pin header |
Yes |
USB 2.0 ports quantity |
4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
Ethernet LAN (RJ-45) ports |
1 |
PS/2 ports quantity |
1 |
HDMI ports quantity |
1 |
DisplayPorts quantity |
2 |
Headphone outputs |
1 |
Microphone in |
Yes |
Ethernet LAN |
Yes |
Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
Wi-Fi |
Yes |
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Bluetooth |
Yes |
Bluetooth version |
5.3 |
Motherboard chipset |
AMD A620 |
Audio output channels |
7.1 channels |
Component for |
PC |
Motherboard form factor |
micro ATX |
Motherboard chipset family |
AMD |
Cooling type |
Passive |
Windows operating systems supported |
Windows 10 x64, Windows 11 |
PCI Express x1 (Gen 3.x) slots |
2 |
Number of M.2 (M) slots |
2 |
BIOS type |
UEFI AMI |
BIOS memory size |
256 Mbit |
Package width |
275 mm |
Package depth |
275 mm |
Package height |
67.5 mm |
Package weight |
920 g |
Width |
244 mm |
Depth |
244 mm |
Height |
50 mm |
Weight |
800 g |
