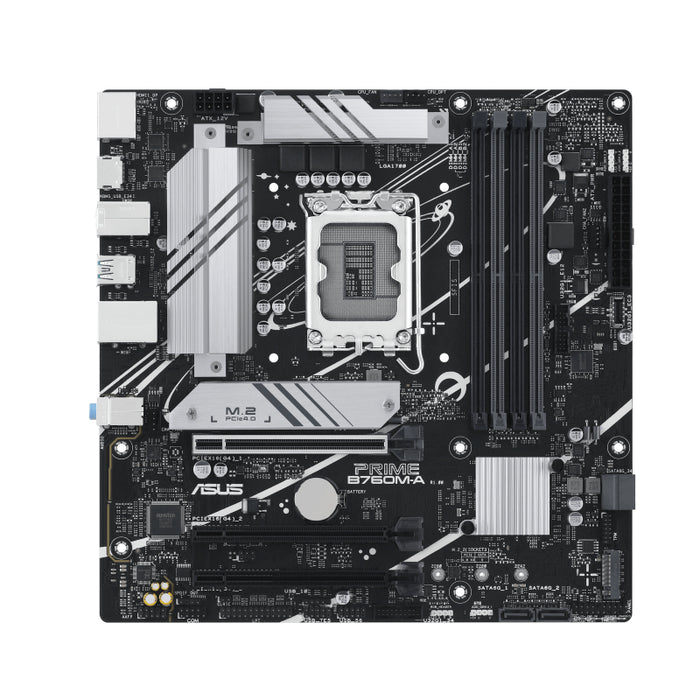

B760M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor sockets: LGA 1700
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max): 7200 MHz
Maximum internal memory: 128 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 2
DisplayPorts quantity: 1
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
WiFi-AP antenna jack: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Features
Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Feature: Clear CMOS button
Packaging data
Package width: 270 mm
Package depth: 263 mm
Package height: 52 mm
Package weight: 1.14 kg
Weight & dimensions
Width: 244 mm
Depth: 244 mm
Height: 40 mm
Packaging content
Cables included: SATA
ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
ASUS
MBR CODE - 90MB1EK0-M0EAYC
EAN - 4711387140710
