Los disipadores de CPU de la línea DX de Noctua se han convertido en la opción predilecta entre las soluciones de refrigeración silenciosa premium para procesadores Intel Xeon. El NH-U14S DX-4677 cuenta con una superficie de contacto más grande y personalizada para plataformas LGA4677. Basado en el disipador NH-U14S de 140 mm de eficacia probada y equipado con dos ventiladores NF-A15 de 140 mm de Noctua, galardonados y controlados por PWM, combina el máximo rendimiento con una acústica excepcional. Complementado con el sistema de montaje profesional SecuFirm2™ y el compuesto térmico NT-H1 preaplicado, el NH-U14S DX-4677 constituye un paquete completo de alta calidad para la refrigeración silenciosa de estaciones de trabajo y servidores Xeon basados en LGA4677.
Serie DX para Intel Xeon
Presentados por primera vez en 2008, los disipadores de CPU de la línea DX de Noctua se han convertido en la opción estándar entre las soluciones de refrigeración por aire silenciosas y de alta gama para procesadores Intel Xeon. Gracias a su excelente eficiencia acústica, son ideales para estaciones de trabajo y servidores que operan en entornos sensibles al ruido (por ejemplo, producción de audio/vídeo, creación de contenido, ingeniería, etc.).
Personalizado para LGA4677
Los nuevos disipadores de la línea DX-4677 son soluciones personalizadas y dedicadas para la plataforma profesional LGA4677 de Intel, lo que los convierte en una opción ideal tanto para las CPU escalables Xeon de cuarta generación (Platinum, Gold, Silver o Bronze) como para los procesadores Xeon de las series w9, w7, w5 o w3 para estaciones de trabajo.
Superficie de contacto ampliada
Con 70 x 56 mm, la superficie de contacto de cobre del disipador es más del doble del tamaño del modelo estándar. Diseñado para alojar los enormes disipadores de calor integrados (IHS) de los procesadores Intel basados en LGA4677, este diseño personalizado permite un flujo de calor óptimo desde la CPU, pasando por la base, hasta los heatpipes y las aletas de refrigeración.

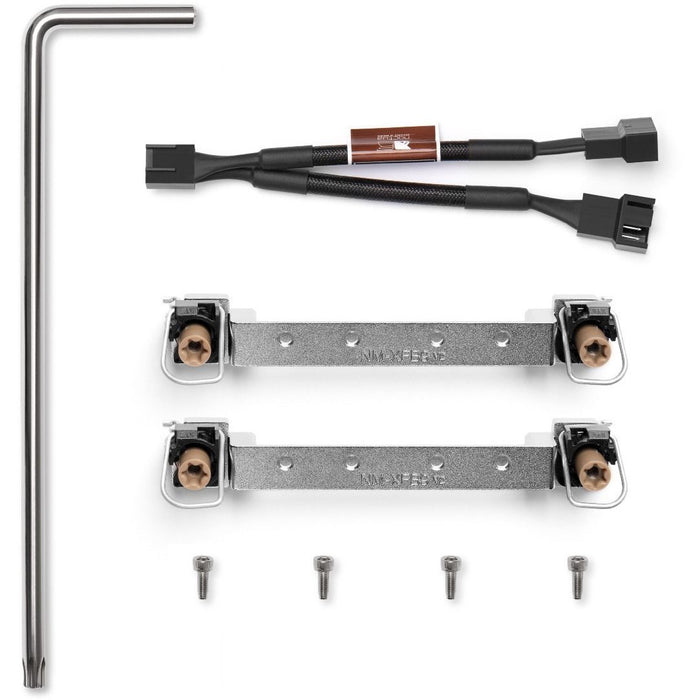

Sistema de montaje SecuFirm2™ con piezas estándar de Intel
Al integrar componentes estándar de Intel, como el mecanismo antivuelco, las tuercas Torx® T30 PEEK y los marcos de soporte específicos para CPU (incluidos con las CPU en caja y disponibles por separado para las CPU de bandeja), el sistema de montaje del disipador cumple totalmente con las directrices de instalación de Intel y ofrece un procedimiento de montaje familiar para usuarios experimentados de LGA4677. Se incluye una herramienta de montaje Torx® T30.
Compatible con marcos portadores E1A, E1B y E1C
Los procesadores LGA4677 requieren marcos de plástico para su instalación, que se incluyen con las CPU en caja y se venden por separado a través de los distribuidores de Intel para las CPU de bandeja. El soporte SecuFirm2™ para LGA4677 es compatible con todos los tipos de soportes (E1A, E1B, E1C).
Tamaño de 140 mm para un rendimiento máximo
Con seis heatpipes, una superficie de aletas de más de 6000 cm² y dos ventiladores NF-A15 de 140 mm altamente optimizados, el NH-U14S DX-4677 ofrece una eficiencia de refrigeración silenciosa superior. Esto lo hace ideal para construir estaciones de trabajo de vanguardia basadas en procesadores Xeon de altísimo rendimiento que funcionan prácticamente en silencio.
Ventiladores premium duales NF-A15 de 140 mm
El NH-U14S DX-4677 está equipado con dos de los galardonados ventiladores NF-A15 de 140 mm de Noctua. Esta potente configuración de doble ventilador push/pull le permite lograr un nivel inigualable de refrigeración silenciosa y lo convierte en la opción predilecta para estaciones de trabajo que requieren la mejor refrigeración posible, sin duda.
Soporte PWM
Los reconocidos ventiladores premium NF-A15 de 140 mm suministrados con el NH-U14S DX-4677 admiten PWM para un cómodo control automático de la velocidad a través de la placa base, lo que les permite funcionar casi en silencio con cargas más livianas y acelerar solo cuando es necesario.
Compuesto térmico NT-H1 preaplicado
El aclamado NT-H1 de Noctua es una solución TIM de calidad profesional que ofrece una resistencia térmica mínima y una estabilidad excepcional a largo plazo. La pasta preaplicada a la base del disipador garantiza un espesor óptimo de la línea de unión y ahorra un tiempo valioso en la instalación. ¡Ideal para integradores de sistemas!
Garantía del fabricante de 6 años
Los productos Noctua son reconocidos por su impecable calidad y excepcional durabilidad. Fiel a esta tradición, el disipador NH-U14S DX-4677 está diseñado para durar, y al igual que todos los ventiladores Noctua, las unidades NF-A15 incluidas tienen un tiempo medio entre fallos (MTTF) de más de 150 000 horas. El paquete completo incluye una garantía completa del fabricante de 6 años.
Actuación
Ubicación adecuada: Procesador
Tipo: Enfriador de aire
Diámetro del ventilador: 12 cm
Zócalos de procesador compatibles: LGA 4677 (Socket E)
Serie de procesadores compatibles: Intel® Xeon®
Velocidad de rotación (mín.): 400 RPM
Velocidad de rotación (máx.): 2500 RPM
Nivel de ruido (alta velocidad): 30,6 dB
Caudal de aire: 96,3 m³/h
Diámetro del ventilador 2: 12 cm
Velocidad de rotación del ventilador 2 (mín.): 400 RPM
Velocidad de rotación del ventilador 2 (máx.): 2500 RPM
Nivel de ruido del ventilador 2 (alta velocidad): 30,6 dB
Tipo de cojinete: Cojinete autoestabilizador de presión de aceite (SSO)
Nivel de ruido del ventilador (máximo): 30,6 dB
Cantidad por paquete: 1 pieza(s)
Velocidad del ventilador (mín.): 400 RPM
Velocidad del ventilador (máxima): 2500 RPM
Tiempo medio hasta el fallo del ventilador (MTTF): 150000 h
Diseño
Color del producto: Beige, Marrón
Material: Aluminio, Cobre
Material del radiador: Aluminio
Material de la placa base: Cobre
Número de ventiladores: 2 ventilador(es)
Número de aspas del ventilador: 7
Material de las aletas: Aluminio
Número de tubos de calor: 6
Conector del ventilador: 4 pines
Fuerza
Voltaje: 12 V
Consumo de energía del ventilador: 1,68 W
Voltaje del ventilador: 12 V
Peso y dimensiones
Ancho: 95 mm
Ancho del radiador: 9,5 cm
Profundidad del radiador: 7,1 cm
Altura del radiador: 12,5 cm
Profundidad: 120 mm
Altura: 125 mm
Peso: 895 g
Dimensiones del ventilador (An x Pr x Al): 92 x 92 x 25 mm
Grosor del abanico: 2,5 cm
Dimensiones del ventilador 2 (An x Pr x Al): 92 x 92 x 25 mm
Detalles técnicos
Periodo de garantía: 6 año(s)
Contenido del embalaje
Tipo de paquete: Caja
Característica: Kit de montaje

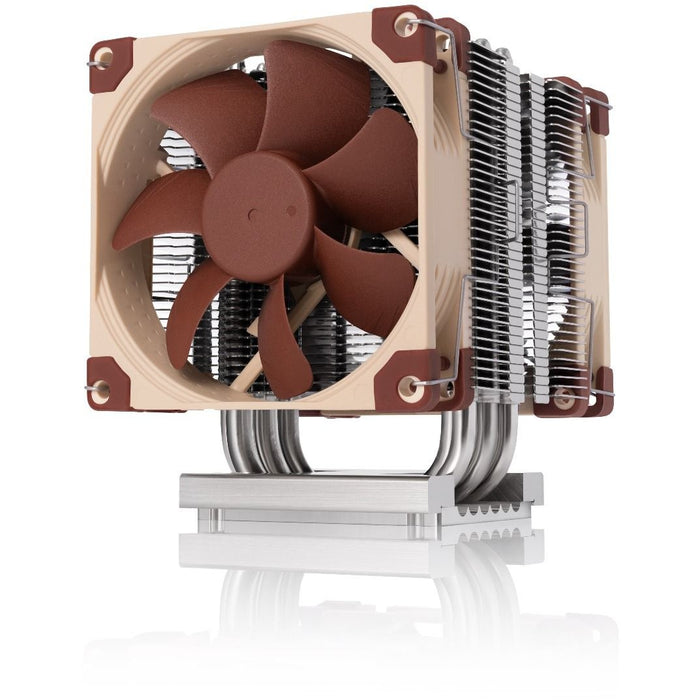

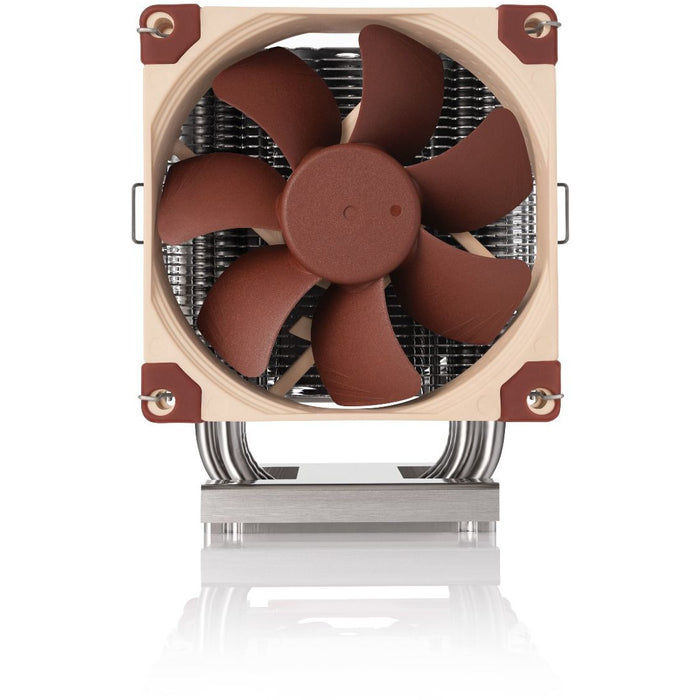

Noctua NH-U9 DX-4677. Tipo: Enfriador de aire. Diámetro del ventilador: 12 cm. Velocidad de rotación (mín.): 400 RPM. Velocidad de rotación (máx.): 2500 RPM. Caudal de aire: 96,3 m³/h. Tipo de rodamiento: Rodamiento autoestabilizante de aceite a presión (SSO). Voltaje: 12 V. Ancho: 95 mm. Profundidad: 120 mm. Altura: 125 mm. Color del producto: Beige, Marrón.
NOCTUA
CÓDIGO MBR - NH-U9 DX-4677
EAN - 9010018000368
Sistema de refrigeración para ordenador Noctua NH-U9 DX-4677
